Stormwater runoff is a leading cause of water pollution, carrying harmful nutrients like nitrogen and phosphorus into waterways. These nutrients fuel algae blooms, create oxygen-deprived "dead zones", and harm aquatic ecosystems. Nutrient removal filters are engineered systems that treat stormwater to remove these pollutants before they reach rivers, lakes, and bays. Here’s a quick overview of how they work and why they’re critical:
- What They Remove: Nitrogen, phosphorus, metals, and sediments from stormwater runoff.
- How They Work: Use physical filtration, chemical adsorption, and biological processes to trap and neutralize pollutants.
- Why They Matter: Protect water quality, reduce algae blooms, and support healthier ecosystems, especially in areas like Maryland, where nutrient pollution is a major issue.
- Key Components: Filter media, flow control structures, pretreatment systems, and underdrains.
In Maryland, where urban runoff contributes significantly to nutrient pollution, these systems are essential for meeting water quality goals and protecting the Chesapeake Bay. With proper design, installation, and maintenance, nutrient removal filters can significantly improve stormwater management and help safeguard natural resources.

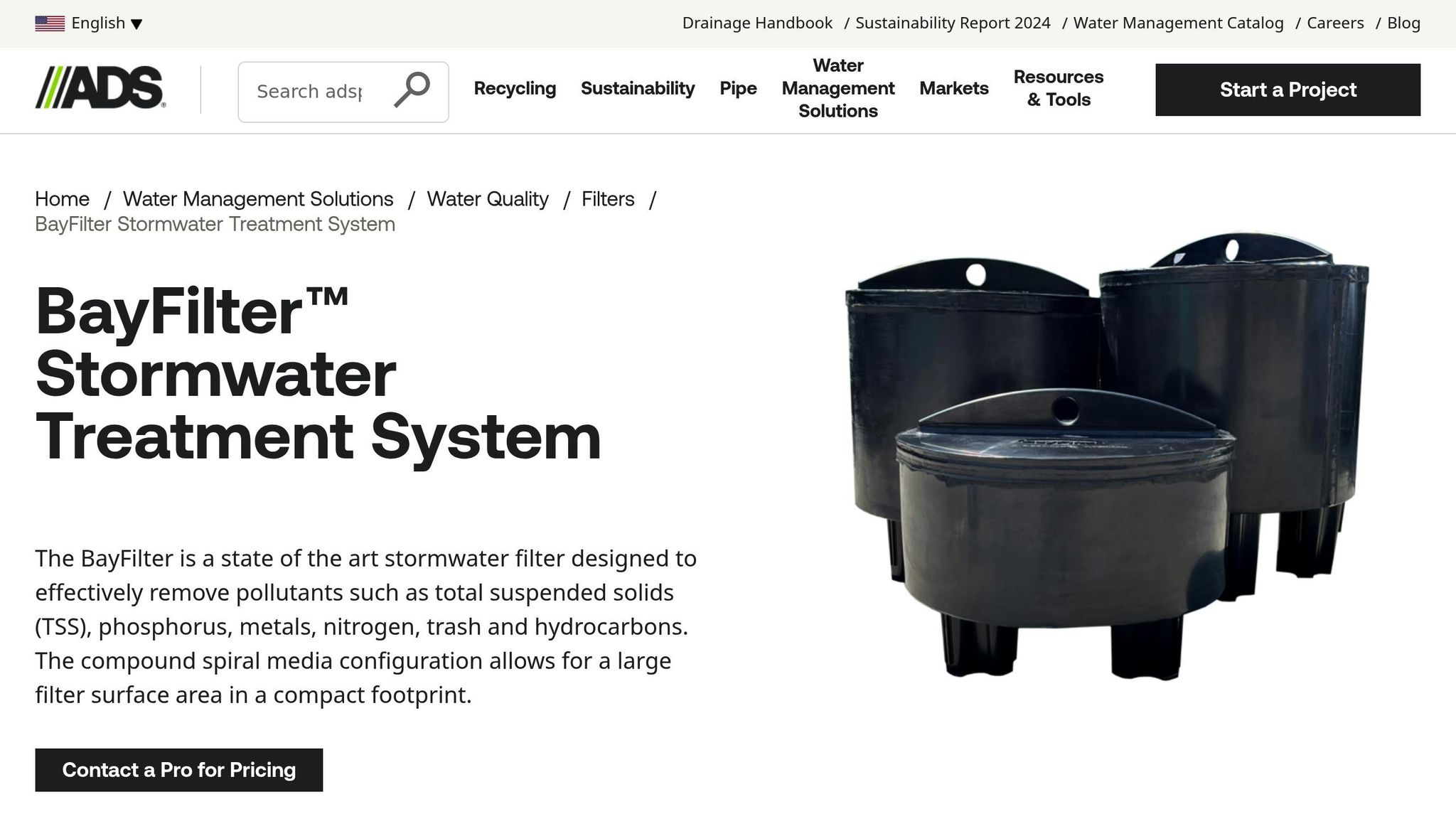

BayFilter Stormwater Filter
How Nutrient Removal Filters Work
Nutrient removal filters are designed to intercept stormwater runoff and treat it through specialized processes that extract nutrients like nitrogen and phosphorus before they enter waterways. These filters rely on a combination of physical, chemical, and biological mechanisms to target both particulate-bound nutrients (attached to sediment particles) and dissolved nutrients (present in solution). By addressing both forms, these systems play a key role in improving stormwater quality.
Filtration Methods
To effectively remove pollutants, nutrient removal systems use three primary filtration methods, each focusing on a specific type of contamination.
Physical filtration acts as the first barrier, using a process called sieving to trap particles too large to pass through the filter media’s pores. This method primarily captures particulate-bound nutrients attached to sediment, leaves, and other debris carried by stormwater. For example, sand filters across the U.S. have been shown to retain an average of 82% (± 14%) of total suspended solids [2].
Chemical adsorption tackles dissolved nutrients that bypass physical filtration. This process occurs when dissolved pollutants adhere to the surface of the filter media or react with materials already present. For phosphorus removal, media can be enhanced with compounds like iron, calcium, aluminum, or magnesium, which chemically bind with dissolved phosphorus to capture it [2].
"Wetlands are able to remove nitrogen and phosphorus through a combination of physical, chemical, and biological processes. These naturally occurring processes adsorb/absorb, transform, sequester, and remove the nutrients and other chemicals as water slowly flows through the wetland." – Jill Kostel, Ph.D., senior environmental engineer, the Wetlands Initiative [3]
Biological uptake adds another layer of treatment, utilizing living organisms to process nutrients. Bacteria play a key role in nitrogen removal through processes like ammonification, nitrification, and denitrification, which convert harmful nitrate compounds into nitrogen gas that escapes harmlessly into the atmosphere [3]. Additionally, vegetation in bioretention systems absorbs nutrients directly through their roots.
The distinction between nutrient types is critical for effective treatment. Total phosphorus includes both particulate-bound and dissolved forms, while total dissolved phosphorus refers to the portion that passes through a 0.45-micron filter [4]. Studies reveal that dissolved phosphorus can account for anywhere from 20% to 90% of total phosphorus in stormwater runoff [4]. This variability underscores the need for multiple filtration methods to address all forms of nutrients.
Next, let’s explore the components that make these filtration methods work.
Main Parts of Nutrient Removal Filters
The effectiveness of nutrient removal filters depends on the interaction of several key components, each contributing to the treatment process.
Filter media is the core of the system, with materials tailored to specific tasks. For instance, sand filters are excellent for capturing particulate-bound phosphorus but are less effective with dissolved nutrients [4].
Active sorptive media represents a step forward, combining physical filtration with chemical processes like adsorption, ion exchange, and precipitation. These engineered materials are designed to capture dissolved phosphorus that traditional sand filters might miss [4].
Flow control structures regulate the contact time between stormwater and the treatment media. A careful balance is needed: larger pores allow faster water flow but may miss pollutants, while smaller pores improve removal efficiency but slow down filtration [2].
Pretreatment components remove larger debris and allow sediment to settle before water reaches the main filtration media. This step helps prevent clogging and extends the lifespan of the system.
The underdrain system collects treated water and directs it to discharge points while ensuring consistent flow and preventing media washout.
Research shows that well-integrated designs can achieve impressive results. For example, a University of Vermont study from 2018-2019 examined bioretention cells treating dairy farm runoff. One cell, featuring vegetation without compost, demonstrated 94.1% to 99.5% removal of nutrient loads, with nitrate removal averaging 94.1% during storm events [4]. This highlights the importance of combining the right components for optimal performance.
Types of Nutrient Removal Systems
Across the U.S., property owners and municipalities rely on three main nutrient removal strategies to address site-specific needs and comply with regulatory standards. These systems build on the physical, chemical, and biological methods already discussed, adapting them to suit different environments and requirements.
Media Filters
Media filters work by using specially chosen materials to capture pollutants within the gaps between particles and on their surfaces [5]. Traditional sand filters are effective at trapping particulate-bound nutrients, but as stormwater treatment requirements have evolved [5], engineers have developed more advanced media blends.
Modern systems combine various media types to target a broader range of pollutants [5]. This adaptability is especially useful in areas like Maryland, where soil types and land use vary significantly – such as the contrasts between Howard County and Montgomery County – which can lead to differing nutrient loads.
"Adsorption occurs when a pollutant is removed through chemical or molecular actions." – Tamara Mamon, March-07-2023 [5]
A notable example of this innovation is the ZPG™ system, which uses a mix of zeolite, perlite, and granular activated carbon. This specialized combination can be tailored to meet changing site conditions and increasingly strict regulations [5]. Media filters are particularly effective in residential areas where installation space and maintenance access are readily available. They improve stormwater quality by removing both suspended particles and dissolved nutrients.
Bioretention Cells and Rain Gardens
Bioretention cells take a more natural approach, using vegetation and soil to reduce nutrient levels. These systems combine plants, soil, and engineered media to treat stormwater, leveraging physical, chemical, and biological processes to improve water quality. Vegetation plays a key role, enhancing these processes and facilitating nutrient uptake. Studies have shown that soil moisture–based controls can remove over 86% of metals and suspended solids, while also reducing ammonium by 43% and nitrate by 74%, compared to standard biofilters [6].
Rain gardens are a common residential application of bioretention technology. These systems temporarily hold stormwater, allowing it to filter through specially designed soil layers. Plant roots absorb nutrients and support microorganisms that process nitrogen compounds. While these systems effectively reduce total phosphorus and nitrogen in runoff [1], careful design is crucial. Improperly designed systems – such as those using phosphorus-rich soils – can inadvertently contribute to nutrient problems by promoting processes like ammonification or nitrification of organic nitrogen [1]. Professional installation is often necessary, especially in areas with challenging soil or stringent regulations, to ensure these systems perform effectively.
Underground Cartridge Systems
For properties with limited space, underground cartridge systems provide a compact and efficient solution. These systems use replaceable cartridges filled with specialized media, housed within underground vaults, to treat stormwater as it flows through.
This approach minimizes surface disruption, making it ideal for retrofit projects or locations where preserving landscaping is a priority. Since the system is hidden underground, it eliminates concerns about aesthetics or visible maintenance. Cartridge systems employ multiple treatment mechanisms, with different cartridge types designed to address specific pollutants based on local stormwater characteristics and regulations.
One of the key benefits of these systems is their consistent performance, regardless of weather or seasonal changes. While surface systems may lose efficiency during winter or dry periods, underground cartridge systems continue to function as long as stormwater flows through them. However, regular cartridge replacement is essential – typically required annually or every few years, depending on stormwater volume and pollutant levels.
For Maryland properties with space limitations or aesthetic considerations, underground cartridge systems offer a reliable way to meet stormwater management goals without compromising the landscape, ensuring effective nutrient removal year-round.
Factors That Affect Performance
The success of nutrient removal filters hinges on several interconnected factors that influence both design and operation. These considerations work hand-in-hand with the filtration mechanisms discussed earlier, shaping system efficiency and ensuring compliance with local regulations.
Media Selection
Picking the right filter media is arguably the most important step in designing an effective system. The performance of filter media depends on its physical characteristics – such as particle size, shape, and porosity – as well as its chemical composition. Additives like iron, aluminum, or calcium can enhance the media’s ability to filter out suspended solids and dissolved nutrients [10][11].
Finer media are great at capturing smaller particles, but they tend to clog faster and create more resistance to water flow compared to coarser options [10]. For example, traditional sand can hold about 1.1 pounds of dry sediment per cubic foot before clogging, while coarser perlite media can manage around 6 pounds of sediment per cubic foot [10]. Specialized media like Iron Filings-based Green Environmental Media (IFGEMs) have shown impressive results, removing over 90% of nitrates and 50–70% of total phosphorus under most conditions [11].
However, not all media are without drawbacks. Organic media, for instance, can increase ortho-phosphorus levels in treated water, which is a concern in nutrient-sensitive areas [10]. Additionally, some media properties can degrade over time due to factors like biological decomposition or prolonged water exposure, potentially impacting long-term performance.
| Media Type | Primary Target Pollutants | Typical Applications |
|---|---|---|
| Sand | Suspended Solids, Fecal Coliforms, Zinc | Sand Filters, Swales |
| Biochar | Nutrients, Heavy Metals, Organic Compounds | Treatment Trains |
| Water Treatment Residuals | Phosphorus, Heavy Metals | Bioretention, Catch Basins |
| Zeolites | Heavy Metals | Permeable Pavement, Treatment Facilities |
"Researchers suggest locally available low-cost media having high capacity to remove pollutants. Other parameters to take into consideration when selecting filter media are clogging, hydraulic parameters." – Lena Johansson Westholm, Department of Sustainable Environment and Construction, Mälardalen University [9]
System Sizing and Hydraulic Design
Proper hydraulic design is essential for achieving nutrient removal efficiency. This includes carefully controlling flow rates and sizing systems accurately based on local infiltration rates and water inflow concentrations. Poor hydraulic design can lead to overloading, reducing treatment effectiveness [7][8].
For example, research indicates that pretreatment units with a 1:4 aspect ratio achieved 37.2% removal efficiency of suspended solids at an inflow rate of 15 m³/h (about 66 gallons per minute). In contrast, units with a 1:1 aspect ratio only managed 13.9% efficiency at a higher inflow rate of 20 m³/h (approximately 88 gallons per minute) [7]. This highlights how geometric design can directly impact system performance.
Pretreatment systems play a key role in boosting overall efficiency by removing debris, solids, and floating materials before stormwater enters the main treatment zone [7].
For properties in Maryland, local conditions like rainfall patterns and soil types must be factored into system sizing. For instance, areas with clay-rich soils may require larger systems due to slower infiltration rates, while sandy soils allow for more compact designs.
Maintenance Requirements
Even with the best design and media selection, regular maintenance is crucial to keep systems operating effectively. Maintenance needs can vary widely depending on the type of system and site-specific conditions.
Routine tasks include inspections, sediment removal, and performance testing, such as field capacity tests, to prevent clogging and maintain filtration efficiency [12]. Property owners should also look out for issues like large holes or ruts in the filter media, addressing these problems promptly and replacing damaged media as needed.
Media replacement schedules depend on factors like watershed characteristics, filter size, land use, and rainfall. For instance, surface sand filter media typically needs replacement every three to five years, while the top layer may require more frequent attention – every one to three years [12].
"Maintenance of filtration practices can range from the relatively easy task of trash removal to the much more expensive and time consuming complete removal and replacement of the filter media and underlying system." – A.J. Erickson, J.S. Gulliver, R.M. Hozalski, P.T. Weiss [12]
In Maryland, seasonal maintenance is especially important. Systems should be prepared for winter freeze-thaw cycles and managed for increased debris during spring runoff. Professional maintenance services can help ensure systems remain effective while extending their lifespan.
sbb-itb-843f8be
Benefits and Drawbacks of Nutrient Removal Systems
When it comes to stormwater management, understanding the advantages and challenges of nutrient removal systems is crucial. These systems offer a range of benefits, but they also come with limitations that need to be carefully evaluated during the planning and implementation process. Let’s break it down.
Environmental benefits are a major reason why these systems are adopted. Nutrient removal filtration systems significantly cut down the nutrient loads responsible for harming many water bodies. Beyond that, they help manage stormwater volume, reduce erosion, recharge groundwater, and create green spaces [1]. By capturing water closer to its source, these systems reduce combined sewer overflows, prevent roadway flooding, and lower the stress on municipal wastewater treatment facilities. Over time, they can also reduce large-scale costs associated with stormwater management [14]. However, these benefits come with some operational hurdles.
System limitations can hinder performance. For instance, stormwater ponds often fail to meet nutrient removal goals, with nitrogen and phosphorus removal rates frequently stuck at around 40% or less [15]. In some cases, improving the removal of one nutrient can actually make it harder to remove another. There’s also the challenge of balancing nutrient removal with efforts to reduce greenhouse gas emissions from stormwater ponds. Sedimentation, while commonly used, isn’t always a reliable way to measure nutrient removal [15]. On top of that, design and maintenance complexities can further complicate things.
Implementation challenges vary depending on the system. Take bioretention systems, grass swales, or grass strips, for example. These systems might use soils or media that are rich in phosphorus or promote processes like ammonification or nitrification of organic nitrogen, which can actually degrade water quality if not carefully managed [1]. On a larger scale, implementing stormwater control measures across a watershed often requires juggling multiple projects and coordinating with stakeholders who may have competing priorities. Plus, evolving regulations can mean that systems designed today might need adjustments in the future [1].
System Type Comparison
| System Type | Nutrient Removal Efficiency |
|---|---|
| Media Filters | 40–50% particulate phosphorus, 5% dissolved phosphorus [2] |
| Bioretention Cells | High for total phosphorus and nitrogen [1] |
| Underground Cartridge Systems | Variable, up to 80% phosphorus with specialized media [13] |
| Stormwater Ponds | Often ≤40% for nitrogen and phosphorus [15] |
| Constructed Wetlands | High for dissolved nutrients [1] |
Specialized media can make a big difference in performance. For instance, FabPhos media can cut phosphorus levels by up to 80% and reduce nitrogen by more than 30% [13].
Space considerations often play a role in determining which system is feasible. High-rate biofiltration systems, for example, deliver effective treatment in a compact design, typically requiring less than 0.5% of the impervious drainage area compared to traditional bioretention systems [16].
In Maryland, selecting the right system often involves balancing performance goals with site-specific constraints. Consulting with professionals can help identify the best solution based on local conditions and regulatory requirements.
"In Minnesota, we have employed watershed districts since 1955. Watershed districts have the unique ability to address water resource issues of common concern based on watershed boundaries and not political ones. However, the greatest value of watershed districts comes with sharing and leveraging technologies for stormwater management that are most cost-effective and partnering locally and regionally on projects with multiple benefits for the District and our partners." – Mark Doneux, WEF Stormwater Community chair and Minnesota Capitol Region Watershed District administrator [1]
Local Applications and Professional Services
Maryland has established clear guidelines for stormwater management, making it easier for property owners to adopt nutrient removal filtration systems. The state’s Stormwater Management Act prioritizes Environmental Site Design (ESD) to the Maximum Extent Practicable (MEP). This approach focuses on managing stormwater at its source using natural methods, such as filters that capture and treat runoff before it flows into larger water systems [17].
The Advancing Stormwater Resiliency in Maryland (A-StoRM) initiative has further strengthened these regulations by incorporating updated rainfall data and stricter ESD standards [17]. For property owners, this means adopting advanced stormwater management solutions is no longer optional – it’s essential. Nutrient removal filters, in particular, have become a practical solution for meeting these updated compliance standards.
On the legal side, Maryland courts use a "reasonableness of use" test to assess whether a landowner’s actions result in pollutants being discharged onto neighboring properties. Installing nutrient removal filters can help property owners avoid potential legal disputes over trespass, nuisance, or negligence.
For residential properties, implementing these systems requires careful planning and expert advice. Best Management Practices (BMPs) combine non-structural approaches with engineered systems designed to meet Maryland’s specific regulatory needs [18]. These systems can be seamlessly integrated into existing landscaping, enhancing both stormwater management and nutrient filtration. Options like permeable pavement, infiltration trenches, and rain barrels can also complement nutrient removal systems, depending on the property’s drainage and soil conditions [18].
Given the complexity of these projects, professional guidance is critical. Central Maryland-based Pro Landscapes MD offers specialized expertise in stormwater management. Their services include French drains, dry riverbeds, grading, and land leveling – all tailored to address water-related challenges effectively. They serve areas like Howard County, Montgomery County, Carroll County, Frederick County, Prince George’s County, and Baltimore County, ensuring compliance with local regulations and adapting to site-specific conditions.
"We specialize in providing tailored drainage solutions for residential and commercial properties. Drainage problems are complex and require a custom approach for each project." – Pro Landscapes MD [19]
Pro Landscapes MD also emphasizes environmentally friendly solutions, aligning with Maryland’s focus on protecting natural resources. Their custom designs tackle drainage challenges while incorporating nutrient removal features. By using environmental pavers and creating sustainable outdoor spaces, they help clients meet both regulatory requirements and aesthetic preferences.
Regular maintenance is a key factor in ensuring these systems perform effectively. Maryland regulations require routine inspections, sediment removal, and vegetation management [17]. With evolving standards and updated rainfall data, working with experienced professionals ensures that installations remain compliant and adaptable to future changes. Proper maintenance also prevents costly retrofits and supports Maryland’s broader efforts to improve water quality.
If you’re dealing with standing water, erosion, or water pooling near your home’s foundation, it may be time to consult a professional about integrating nutrient removal systems [19]. These issues often signal opportunities to implement solutions that address both stormwater management and nutrient filtration in one step.
Conclusion
Nutrient removal filters play a crucial role in safeguarding water resources from the increasing challenge of stormwater pollution. These systems have shifted from being optional upgrades to essential infrastructure, addressing the pressing need for effective stormwater treatment.
By tackling the root causes of water quality issues, these systems make a measurable impact. Media filters and high-rate bioretention systems are particularly effective at removing total phosphorus and total nitrogen from stormwater runoff, while other designs excel at capturing dissolved nutrients [1]. This targeted method helps mitigate problems like harmful algal blooms, oxygen depletion, and damage to aquatic ecosystems caused by excessive nutrient loading. Every aspect of these systems is grounded in rigorous scientific research.
For Maryland property owners, installing nutrient removal filters offers multiple benefits. Beyond enhancing curb appeal and increasing property value, these systems provide long-term protection against water-related challenges [20]. They address both technical functionality and aesthetic concerns, aligning with Maryland’s strict water quality standards. However, the complexity of these systems – ranging from selecting the right filtration media to ensuring proper hydraulic design and ongoing maintenance – makes expert guidance indispensable.
Pro Landscapes MD specializes in stormwater management solutions that seamlessly integrate nutrient removal systems into existing landscapes while adhering to Maryland’s evolving regulations. Their expertise in French drains, grading, and environmental pavers ensures comprehensive solutions that tackle both immediate drainage needs and long-term nutrient filtration. As one client shared, the company consistently delivers on its promises, creating outdoor spaces that are both functional and visually appealing.
Professional installation not only reduces maintenance demands but also ensures proper plant selection, optimizes irrigation, and minimizes potential performance issues [20]. More importantly, these systems contribute to the larger goal of protecting Maryland’s waterways for future generations. With stormwater regulations becoming increasingly stringent, early adoption positions property owners ahead of compliance requirements while actively supporting watershed preservation efforts.
Experts agree that effective stormwater management requires a coordinated approach, combining cost-efficient technologies with regional partnerships to maximize environmental benefits.
Moving forward, the integration of source reduction measures, green infrastructure, and advanced treatment systems will be key [1]. Nutrient removal filters are a cornerstone of this strategy, offering property owners a practical and impactful way to improve water quality, protect their investments, and meet regulatory demands – all while contributing to the health of local waterways.
FAQs
What makes nutrient removal filters more effective than traditional stormwater systems?
Nutrient removal filters are specially designed to tackle pollutants like nitrogen and phosphorus in stormwater – two of the biggest culprits behind water pollution. These filters use advanced media to achieve impressive nutrient reduction rates, sometimes as high as 96%. In comparison, traditional systems typically manage to remove only 44–73% of these nutrients.
Unlike conventional stormwater systems, which mainly focus on controlling water volume and trapping sediments, nutrient removal filters take it a step further by targeting nutrient-specific contaminants. This makes them particularly effective in urban areas, where nutrient runoff poses a serious challenge to water quality.
What kind of maintenance do nutrient removal filters need, and why is it important for their long-term performance?
Nutrient removal filters in stormwater systems need regular upkeep to keep working efficiently over time. This includes inspecting the filters at least twice a year to identify and resolve issues like clogging, sediment buildup, or other blockages. Regular cleaning and removing accumulated sediment are crucial to maintaining the system’s filtration capacity and preventing inefficiencies.
Sticking to a consistent maintenance schedule helps the system effectively remove pollutants such as nitrogen and phosphorus. With proper care, these filters can maintain strong performance for more than a decade. On the other hand, neglecting maintenance can lead to reduced filtration efficiency, higher levels of pollutants passing through, and even system failure. Routine attention not only extends the system’s lifespan but also ensures it continues safeguarding water quality effectively.
How can property owners choose the right nutrient removal system for their stormwater management needs?
When deciding on a nutrient removal system, property owners need to factor in their property’s size, how the land is used, and any local water quality concerns. Equally important is reviewing regulatory requirements, such as permit limits and Total Maximum Daily Loads (TMDLs), to ensure everything stays compliant.
Getting advice from professionals or conducting a site assessment can make a big difference in finding the right solution. Options might include a filtration system, a detention basin, or even a constructed wetland. By customizing the system to fit your location’s specific needs, you can achieve effective nutrient reduction while supporting long-term environmental health.
