Want to reduce flooding, cut water bills, and help the environment? Permeable patio pavers and rainwater harvesting systems are the perfect solution for managing stormwater while enhancing your outdoor space. Here’s what you need to know:

• Rainwater Harvesting: Collect and store rainwater for irrigation, flushing toilets, or washing cars. Save up to 40–50% on water bills.
• Permeable Pavers: Let water pass through the surface, reducing runoff and filtering pollutants. They’re durable, eco-friendly, and handle heavy rainfall effectively.
• Combined Benefits: Together, these systems reduce flooding, replenish groundwater, and protect local waterways.

Quick Comparison of Paver Types:

Paver Patio (Permeable) Base Prep | Why I Use (Open Grade Base)

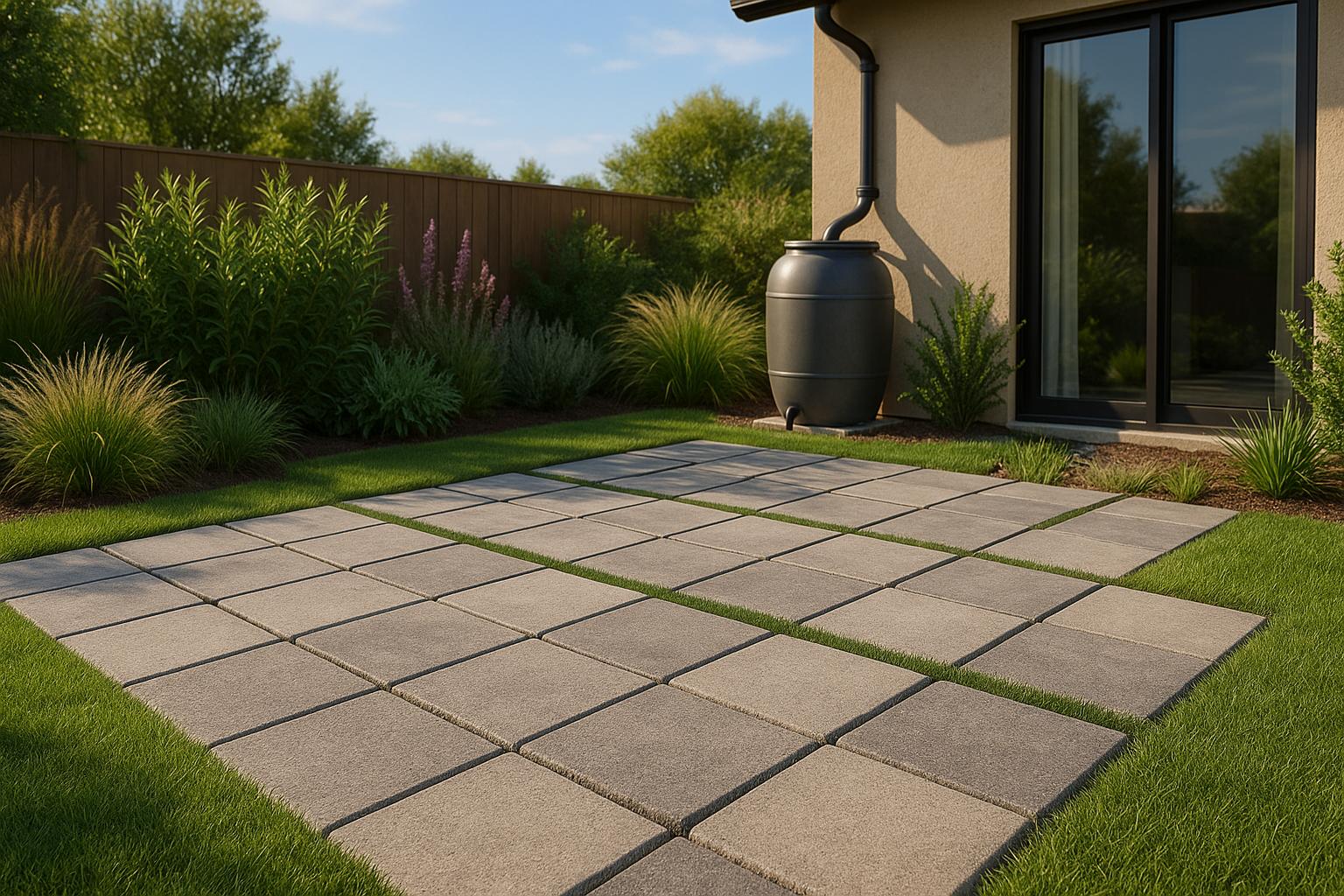

What Are Permeable Patio Pavers?

Permeable patio pavers are paving materials designed to let water flow through the joints and into the ground below. Unlike traditional options like concrete, asphalt, or brick, which create runoff, these pavers actively manage water by directing it into the soil^[3]. They essentially turn your patio into a mini water management system.

What makes them different? Traditional pavers create solid, impervious surfaces, while permeable pavers use wider, open joints to guide water back into the earth^[4]. This design helps prevent water pooling and supports eco-friendly water management.

"Permeable pavements can offer multiple benefits as they provide surfaces for both vehicles and pedestrians while reducing stormwater discharges." – United States Environmental Protection Agency (EPA)^[6]

Structurally, permeable pavers stand out. They’re thicker – measuring about 3 1/8 inches (80 mm) compared to the standard 2 3/8 inches for traditional pavers^[5]. Their base system is also unique, relying on a deep, gravel-only foundation instead of the thinner concrete sand and gravel used for traditional setups^[4].

Another key difference? Permeable pavers avoid using sand between the joints, as sand can block water filtration^[5]. Instead, they use clean, washed aggregate, which allows water to pass through easily. These design choices ensure both efficient water management and structural durability.

Key Features of Permeable Pavers

Permeable pavers are part of a system designed to handle stormwater effectively. Here’s how they work:

• Interlocking pavers: These form the visible surface, while the joints between them create channels for water infiltration.
• Aggregate layers: Beneath the surface, multiple layers of stone store and filter water. The setting bed aggregate, with its 40% void space, allows water to flow quickly, while ASTM No. 57 and No. 2 aggregates provide high infiltration rates^[9].
• Geotextile fabric: High-flow fabric separates the aggregate layers or acts as a barrier between the aggregates and the soil below^[10].
• Edge restraints: These maintain the system’s structural integrity, keeping the pavers in place over time.

This combination of elements creates a surface capable of handling up to 100 inches of rainfall per hour per square foot of hardscape^[7].

Benefits for Your Property

The features of permeable pavers translate into practical advantages for homeowners, especially those in areas prone to heavy rain. These pavers allow water to soak into the ground instead of overwhelming drainage systems, reducing the risk of flooding on your property and in your neighborhood^[3][8].

They also help replenish groundwater by returning rain and snowmelt to the water table, supporting the natural water cycle and easing the burden on municipal systems^[5]. As water moves through the aggregate layers, it gets filtered, removing pollutants like oils, heavy metals, and nutrients before reaching groundwater or drainage systems^[8]. This natural filtration process benefits local waterways and ecosystems.

Financial incentives make permeable pavers even more appealing. For example, in Prince George’s County, Maryland, the Rain Check Rebate Program offers rebates of $12 per square foot for residential properties, with a maximum of $12,000. Commercial and multi-family properties can qualify for even higher rebates^[5].

Permeable pavers can handle twice as much water as non-permeable options^[4], making them highly effective for rainwater management. They also cut down on the need for road salt in winter, requiring only 0 to 25% of the salt typically used on asphalt for deicing^[11].

In the long run, these pavers can lower construction costs for drainage infrastructure and make properties more resilient to flooding and water damage. Choosing permeable pavers means investing in a solution that tackles immediate water issues while promoting long-term environmental health.

Designing a Rainwater-Harvesting Patio with Permeable Pavers

Building a rainwater-harvesting patio takes thoughtful planning. Your design should align with your property’s features, comply with local regulations, and meet your water management goals.

Site Assessment and Preparation

Before starting construction, take time to evaluate your site. Begin with the soil. Clay soil drains slowly and might need extra drainage solutions, while sandy soil drains quickly but could require adjustments to prevent erosion. If your soil is rocky or compacted, additional preparation may be necessary.

Pay attention to the natural flow of water on your property. Identify areas where water pools, flows, or exits. This will guide you in positioning your patio to collect rainwater efficiently while avoiding spots prone to standing water.

"Evaluating the underlying soil characteristics and local climate is key to determining whether a pervious pavement system is an appropriate best management practice for stormwater management" ^[13].

It’s also crucial to review Maryland’s stormwater management rules. Different counties have specific requirements for on-site runoff, and addressing these early can save you from costly revisions later. Plus, some regulations may offer rebate opportunities.

Mark underground utilities like water, gas, and electrical lines before digging. Also, consider how the patio will connect to existing drainage systems, downspouts, and the layout of nearby properties. These steps will shape the foundation of your design.

Key Design Elements

Use your site assessment to design a patio that maximizes water capture and management. Think about the size of the patio – larger patios collect more rainwater but require more materials and excavation. Beyond the patio itself, take into account surrounding areas like roof surfaces, walkways, or landscaped slopes that direct water toward the patio.

If your plan includes features like rain gardens or drainage cells, their placement should complement the property’s natural water flow. For effective drainage, maintain a gentle slope of 1/8 inch per foot to steer water safely away from your home’s foundation ^[15].

Choose materials that can handle Maryland’s freeze-thaw cycles while allowing water to pass through. Permeable brick pavers with small gaps are a great option. The gaps let water seep into the ground, while the pavers provide a solid, durable surface.

The sub-base plays a major role in water management. An open-graded stone base, combined with geotextile fabric, can temporarily store water and filter it as it moves into the soil below. This setup helps prevent soil migration and supports long-term performance.

Active vs. Passive Systems

Deciding between a passive or active rainwater-harvesting system depends on your goals. Here’s a closer look at both:

• Passive systems rely on gravity and natural water flow. Water infiltrates directly into the soil, making this a simple, low-maintenance solution that works immediately during rainfall.
• Active systems use tanks, pumps, and filters to collect and store water for later use, such as irrigation. By connecting your patio to a cistern or tank, you can save rainwater for dry periods.

Here’s a quick comparison:

A hybrid approach often works best. Your patio can allow water to infiltrate the soil (passive), while excess water flows into a storage tank (active) for future use ^[16].

If you include active components, consider exfiltration pipes to manage water flow. These pipes should discharge into open areas with natural slopes. For perforated pipes, position holes at the 4 and 7 o’clock positions to reduce clogging ^[14]. Avoid connecting them directly to pop-up emitters, as this can cause backflow problems.

In areas with clay soils or high water tables, a French drain system can improve water management. This involves a perforated pipe surrounded by gravel and fabric, creating an additional path for water that isn’t absorbed quickly enough ^[15].

Finally, design your system to handle Maryland’s varying weather, from heavy spring rains to summer storms and winter freeze-thaw cycles. Ensure storage and drainage components are sized for typical storm events and include overflow pathways for extreme conditions. A well-thought-out design will keep your system running smoothly year-round.

Installing Permeable Patio Pavers: Step-by-Step Guide

Installing permeable pavers for rainwater harvesting demands careful planning, precise execution, and the right materials. These pavers create a system of layers that work together to manage and filter stormwater effectively.

Tools and Materials You’ll Need

To get started, gather the following tools: basic excavation equipment like shovels, a plate compactor, and a wheelbarrow. A string line and a level will help you maintain the proper grade throughout the project.

For materials, choose permeable pavers that suit your design. For instance, a Techo-Bloc project featured Victorien Permeable pavers in Chestnut Brown, bordered with Chocolate Brown pavers, and Antika pavers in Onyx Black. They were installed with intentional spacing filled with open-graded stone for proper drainage ^[17].

The foundation of this system is a layered setup. Start with a base of larger aggregate stones, followed by finer aggregates on top. Beneath these layers, a geotextile fabric prevents soil from mixing into the aggregate while still allowing water to pass through.

If your design includes water storage, you’ll need additional components. In the Techo-Bloc project, AquaBlox® units were used for water storage, along with a snorkel and a Pondless® Waterfall Vault for water recirculation ^[17]. These elements create an active rainwater harvesting system, capturing and storing water for future use.

With all your tools and materials in place, you’re ready to move on to the installation process.

Installation Process

Follow these steps to ensure your pavers are installed correctly and maximize rainwater infiltration:

• Excavate the area: Dig to a depth of 12–18 inches, extending beyond the patio’s edges to allow for edge restraints and proper drainage slopes.
• Lay the geotextile fabric: Cover the entire excavated area with geotextile fabric, overlapping the seams to block soil from mixing with the aggregate layers.
• Add the base layer: Spread larger aggregate stones and compact them in 4- to 6-inch layers to ensure stability and effective drainage.
• Intermediate aggregate layer: Add a second layer of smaller stones, compacting thoroughly. This layer helps filter sediments as water moves through ^[18].
• Bedding layer: Spread a 1–2 inch layer of fine aggregate over the compacted base, using a screed board to ensure even thickness and proper slopes for drainage.
• Lay the pavers: Start from one corner, leaving uniform gaps between pavers. Fill these gaps with open-graded stone, then sweep additional stone into the joints and lightly compact to secure the pavers.

Connecting Drainage or Storage Systems

Once the pavers are in place, it’s time to integrate your drainage or water storage system to capture and store rainwater effectively.

For active systems, underground tanks or modular "cells" can store collected rainwater. These systems, like R-Tank stormwater modules, offer up to 95% void space for storage and are made from post-industrial polypropylene ^[19]. Pipes are typically connected directly to the R-Tank and sealed with a geotextile boot to prevent soil intrusion while maintaining system integrity. R-Tank systems can also support pump-based setups for irrigation or other uses. Wrap the system in geosynthetic material for added durability ^[19].

Water quality is crucial for stored rainwater. Incorporate a two-step pre-treatment process: install stormwater filters upstream and include a Treatment Row within the storage unit to maintain clean water ^[19].

One real-world example highlights the potential of this approach. In 2023, Terreworks transformed a backyard in Queen Anne after flooding damaged the lawn. They installed flagstone permeable pavers with thyme-filled joints, added a 1,500-gallon underground cistern for roof runoff, and created a raised-bed vegetable garden irrigated by the harvested rainwater. This redesign eliminated pooling, cut outdoor water use by 60%, and boosted property value ^[20].

"Our goal is to create outdoor spaces that work harder for you and the planet." – Terreworks Landscaping Team ^[20]

sbb-itb-843f8be

Maintenance and Longevity of Permeable Paver Systems

Once your permeable paver system is installed, keeping up with maintenance is key to ensuring it performs well and continues to support rainwater harvesting. Compared to traditional pavements, these systems require less upkeep, but they still need regular attention to stay effective.

Routine Maintenance Tasks

Regular cleaning is a must. Aim to sweep and use a leaf blower weekly to clear away debris that can clog the system, especially during the fall when leaves and organic material pile up quickly^[23].

Seasonal deep cleaning involves more thorough care. Twice a year, use a shop vacuum to remove sediment from the joints and pores. For gravel-filled pavers, power washing is a great way to clear out clogs^[21]. After cleaning, refill the joints with fresh aggregate to maintain proper spacing and drainage. Check aggregate levels periodically, especially after heavy rains or freeze-thaw cycles, and replenish as needed^[22][23].

Annual inspections are another important step. Inspect your patio at least three times a year, especially after heavy rain. If water pools for more than an hour, it could signal clogging or drainage problems that need immediate attention^[21][22].

Here are some common issues to watch for during inspections:

Weed control is also part of the routine. Pull weeds by hand or use eco-friendly herbicides to prevent vegetation from blocking water flow through the joints. Avoid using sand for filling joints, as it can clog the system and reduce infiltration rates^[21][23].

Performance in Maryland’s Climate

Maryland’s climate introduces specific challenges for maintaining permeable paver systems, from heavy summer thunderstorms to winter freeze-thaw cycles and fluctuating temperatures. Tailoring your maintenance to these conditions can make a big difference.

Winter preparation is especially important. Traditional road salts like sodium chloride can damage pavers and contaminate harvested rainwater. Instead, opt for magnesium chloride for temperatures above 5°F or calcium chloride for colder conditions. Liquid forms of these alternatives work better and are less harmful to the environment^[24]. After snowstorms, clear snow promptly to prevent ice buildup, which could crack the pavers. For extra traction, use small gravel or stones instead of sand^[21].

Spring maintenance focuses on recovery from winter. Flush out any remaining de-icing chemicals in early spring, after the last freeze but before plants start budding. This prevents salt buildup, which could harm nearby vegetation and contaminate stored rainwater^[24].

During summer storms, it’s essential to keep your system’s joints and drainage paths clear. Maryland’s intense summer rains can overwhelm a clogged system, so make sure to clean the joints and inspect drainage pathways before the storm season starts.

Soil drainage is also a critical factor in Maryland, where clay-heavy soils are common. Properly draining the soil around your patio helps manage salt concentrations and improves the system’s overall performance. If your property struggles with poor drainage, consider installing subsoil drain lines to prevent water backup during heavy rain^[24].

Why Choose Pro Landscapes MD for Your Permeable Patio Project

Thinking about transforming your outdoor space with a permeable patio that efficiently collects rainwater and manages drainage? Finding the right contractor isn’t just about technical know-how – it’s about understanding the unique challenges of Maryland’s environment. That’s where Pro Landscapes MD comes in, combining expertise with a deep understanding of local conditions to deliver tailored solutions.

Comprehensive Hardscaping and Drainage Services

Pro Landscapes MD doesn’t just install pavers – they provide a full-service approach to hardscaping and drainage. Their expertise ensures every project integrates patio design and installation with advanced water management systems, creating a seamless solution for rainwater harvesting.

Their services go beyond surface-level installations. They specialize in building flagstone and paver patios while incorporating critical infrastructure like French drains, stormwater management systems, and drainage installations. This unified approach means you won’t need to juggle multiple contractors – every component of your project is designed to work together flawlessly.

From preparing the site to addressing underlying soil issues, Pro Landscapes MD ensures proper drainage and grading to support long-term performance. For permeable paver systems, this attention to detail makes all the difference. They can install subsurface drainage systems and create slopes that direct rainwater exactly where it’s needed, whether that’s toward a rain garden, an underground storage cistern, or specific areas of your landscape.

Their knowledge of environmental pavers ensures your patio not only handles water effectively but also maintains its structural integrity. Whether it’s channeling rainwater for irrigation or designing systems to reduce runoff, they’ve got the technical expertise to make it happen.

Deep Local Knowledge for Maryland Properties

What sets Pro Landscapes MD apart is their deep understanding of Maryland’s unique conditions. With years of experience across central Maryland, they’ve developed the insights needed to design systems that are both efficient and durable. Maryland’s stormwater management regulations, including the fee introduced in 2013 for ten counties, make compliance a key part of any project^[26].

Pro Landscapes MD serves a wide range of areas, including Howard County, Montgomery County, Carroll County, Frederick County, Prince George’s County, and Baltimore County. Communities like Ellicott City, Columbia, Gaithersburg, Bethesda, and Annapolis benefit from their localized expertise. They understand the specific soil conditions, drainage challenges, and regulatory requirements of each area, ensuring every project is tailored to perform optimally.

Their familiarity with Maryland’s climate means they can engineer systems that handle everything from summer storms to winter freezes. For example, they know when to incorporate subsoil drain lines to prevent backups or recommend materials that can withstand temperature swings while maintaining effective water infiltration.

Pro Landscapes MD also draws on successful local examples, such as Ellicott City’s use of rain gardens, permeable pavers, and bio-retention cells to combat flooding and pollution^[25]. They’ll guide you through selecting the right materials – whether porous, pervious, or permeable pavers – to meet your needs and Maryland’s specific requirements^[26].

Conclusion

Permeable patio pavers offer Maryland homeowners a practical way to manage stormwater while enhancing the beauty of outdoor spaces. A 1,000-square-foot permeable patio can hold up to 3,000 gallons of water ^[2], reducing runoff and improving water quality by filtering out 85% of suspended solids, 35% of phosphorus, and 30% of nitrogen ^[22].

Beyond water management, these pavers provide additional environmental perks. They help combat the urban heat island effect, reduce erosion, and eliminate standing water – cutting down on mosquito breeding grounds ^[2]. They’re also more durable than traditional asphalt and often need less de-icing during Maryland’s winters, making them a smart choice for areas with heavy rainfall or snow. However, to fully unlock these advantages, proper design and professional installation are essential.

Regular maintenance is equally important to keep the system functioning efficiently. Sediment buildup can clog the pavers, so it’s recommended to inspect the system three times a year, especially after heavy rain, and schedule a deep cleaning annually ^[1][12][21]. These steps ensure the system continues to provide high-level drainage performance.

A successful installation requires more than just laying pavers. It involves a detailed site assessment, soil testing, and adherence to Maryland’s stormwater regulations. Incorporating drainage solutions like French drains might also be necessary. Working with professionals like Pro Landscapes MD ensures the system is tailored to the state’s specific environmental and regulatory needs.

For homeowners in Howard, Montgomery, Carroll, Frederick, Prince George’s, and Baltimore counties, a well-designed and maintained permeable patio system offers more than just stormwater control. It strengthens property resilience, reduces environmental impact, and supports water conservation – providing a sustainable solution for years to come.

FAQs

How do permeable patio pavers save money on water bills and benefit the environment?

Permeable patio pavers offer a smart way to reduce water bills by letting rainwater seep into the ground instead of flowing into storm drains. This natural process eliminates the need for expensive drainage systems and helps replenish groundwater. For example, a 1,000-square-foot patio designed with these pavers can hold thousands of gallons of water, easing pressure on local sewage systems and lowering water treatment expenses.

From an environmental perspective, these pavers act as natural filters, removing pollutants as water passes through. This improves water quality and helps protect nearby rivers and streams. They also play a role in minimizing flooding and contribute to effective stormwater management. Opting for permeable pavers is not just a practical choice but also an environmentally conscious one, enhancing your outdoor space while supporting a healthier ecosystem.

What’s the difference between passive and active rainwater harvesting systems, and which is better for residential use?

Rainwater harvesting systems generally fall into two categories: passive and active.

Passive systems make use of natural features such as permeable pavers, swales, or dry creek beds to collect and allow rainwater to soak into the ground. These systems are affordable, require little upkeep, and are excellent for improving drainage while replenishing groundwater in residential areas.

Active systems, by contrast, rely on mechanical components like pumps, filters, and storage tanks to gather, store, and distribute rainwater. While they offer greater flexibility and can supply water for irrigation or indoor use, they come with higher costs and demand more maintenance.

For most homeowners, passive systems are a simple and environmentally friendly option, especially if you’re aiming for a budget-friendly way to manage water sustainably. However, if you need a steady water supply for specific purposes, investing in an active system could be the better choice.

What maintenance is needed to keep permeable pavers effective in Maryland’s climate?

Maintaining Permeable Pavers in Maryland’s Climate

Keeping permeable pavers in top shape in Maryland’s varied climate requires consistent upkeep. Start by removing debris and sediment through vacuuming or sweeping at least twice a year – this helps prevent clogs that can reduce their effectiveness. Regular inspections are also a must to spot any damage or signs of reduced drainage.

Winter care requires extra attention. Skip the sand and go easy on salt to avoid harming the pavers. If you’re snow plowing, make sure to keep the blade slightly raised to prevent accidental damage. These straightforward maintenance steps can help your permeable pavers remain durable and functional for years.
