Stormwater runoff in Maryland is a growing problem, especially in urban areas like Baltimore and Bethesda. As impervious surfaces expand, runoff carries pollutants – like heavy metals, nutrients, and sediments – into waterways, impacting ecosystems like the Chesapeake Bay. To tackle this, five filtration systems are commonly used: bioretention cells, infiltration trenches, permeable pavements, sand filters, and vegetated swales. Each system offers unique benefits for pollutant removal and runoff management, but their effectiveness depends on factors like soil type, climate, and design.

Key Takeaways:

• Bioretention Cells (Rain Gardens): Remove up to 90% of suspended solids and 60–95% of heavy metals. Cost: $10–$40/sq. ft.
• Infiltration Trenches: Handle 87% of rainfall and remove up to 98% of suspended solids. Cost: Moderate.
• Permeable Pavements: Reduce runoff by 50–90% and filter pollutants. Cost: $8–$16/sq. ft.
• Sand Filters: Effective for suspended solids but focus more on water quality than volume. Cost: $3–$10/sq. ft.
• Vegetated Swales: Affordable, reduce peak runoff by 30–60%, and improve water quality. Cost: $4–$10/sq. ft.

Choosing the right system requires evaluating site conditions and maintenance needs. For Maryland’s clay-heavy soils and variable rainfall, professional design and installation ensure long-term success.

Sand Filter Systems – Explained

1. Bioretention Cells (Rain Gardens)

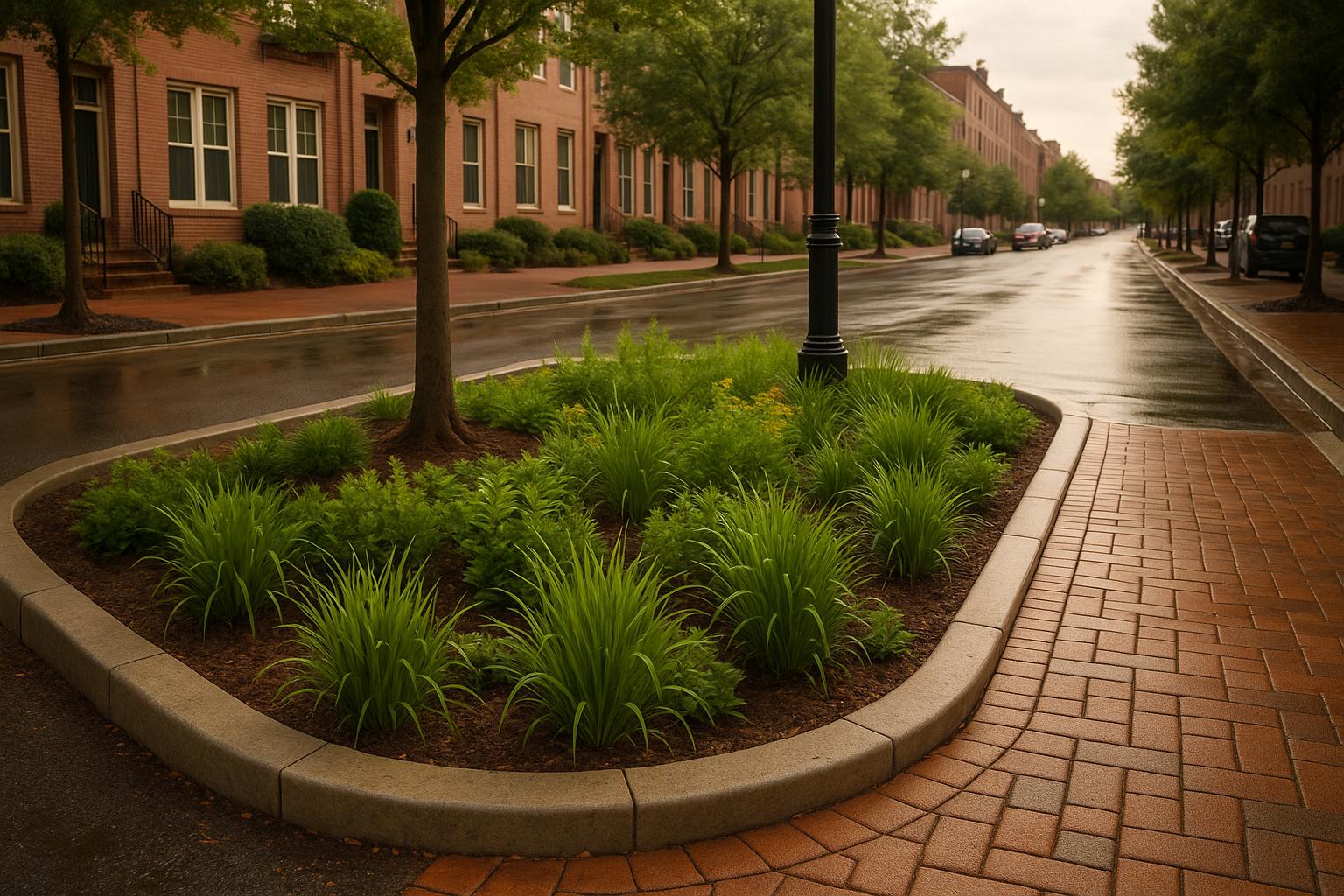

Bioretention cells, commonly known as rain gardens, are shallow, plant-filled basins designed to manage stormwater runoff from hard surfaces like rooftops, driveways, and parking lots. These systems work by filtering water through specially engineered soil layers, where pollutants are trapped and broken down through processes like physical filtration, chemical absorption, and biological activity involving plants and microbes. The treated water either soaks into the ground naturally or is collected via an underdrain for controlled release. This approach mirrors how forests and other natural landscapes handle water, making it an essential Low Impact Development (LID) method for urban environments.

Pollutant Removal Efficiency

Rain gardens are highly effective at cleaning polluted runoff. Depending on their design and the materials used, they can remove up to 90% of total suspended solids, 60–80% of phosphorus, 40–60% of nitrogen, and 60–95% of heavy metals like zinc and copper. The efficiency of pollutant removal depends on factors such as the depth and composition of the filter media and the maturity of the plants. In some cases, adding biochar to sand layers has further improved the system’s ability to capture pollutants and enhance water infiltration.

Runoff Volume Reduction

Rain gardens can retain between 50–90% of stormwater, significantly cutting runoff by 30–80% during typical rainfall events. This reduction not only helps prevent downstream flooding but also reduces the burden on stormwater drainage systems. Their performance depends on variables like soil permeability, rainfall intensity, and the ratio of the rain garden’s size to the area it drains.

Installation and Maintenance Costs

The cost to install a rain garden typically ranges from $10 to $40 per square foot, varying based on site conditions and design complexity. Annual maintenance costs are relatively low, at about $0.50 to $2.00 per square foot. Regular upkeep involves tasks like weeding, replacing mulch, removing sediment, and occasionally replanting, which is usually required once or twice a year. Using locally available materials, such as sand and compost blends, can help keep costs manageable while promoting environmentally friendly practices.

Suitability for Maryland’s Climate and Soil

Maryland’s mix of soil types and steady rainfall makes it an ideal location for rain gardens. The state’s moderate to high annual precipitation supports their functionality, while soil amendments can address compacted areas to improve water infiltration. Choosing native plants that can handle both dry spells and temporary flooding ensures these systems remain effective despite Maryland’s variable weather. Programs like Montgomery County’s RainScapes initiative highlight how well-designed rain gardens can reduce runoff and enhance local water quality.

Pro Landscapes MD offers specialized services in designing and building rain gardens tailored to the specific conditions of central Maryland. Their knowledge of the local climate, soil characteristics, and native vegetation ensures these systems not only manage stormwater effectively but also add beauty and functionality to outdoor spaces.

Next, we’ll explore infiltration trenches, another practical solution for managing urban runoff.

2. Infiltration Trenches

Infiltration trenches are essentially trenches filled with stone or gravel, designed to temporarily hold stormwater runoff and allow it to seep into the soil below. These systems are particularly effective at capturing runoff from hard surfaces like parking lots, sidewalks, and rooftops. As the water filters through the trench, it undergoes physical, chemical, and biological processes that help remove pollutants. To improve their efficiency, a perforated pipe and filter fabric are often included, which help manage both the volume of water and the pollutants it carries.

Pollutant Removal Efficiency

One of the standout benefits of infiltration trenches is their ability to handle pollutants tied to urban stormwater. Studies show they can remove up to 98% of total suspended solids, 88% of total phosphorus, and 68% of dissolved zinc – a heavy metal commonly linked to vehicle traffic and building materials ^[2]. The type of filter media used plays a big role in how well these trenches perform. Adding vegetation to the design can take things a step further, as plant roots enhance the removal of both particulates and certain dissolved pollutants.

Runoff Volume Reduction

These trenches don’t just filter water – they also reduce the amount of stormwater runoff. By storing water on-site and encouraging infiltration, they can handle up to 87% of rainfall, easing the burden on municipal drainage systems. However, their effectiveness depends on factors like the soil’s infiltration capacity and other hydraulic properties, which is why site-specific evaluations are crucial.

Installation and Maintenance Costs

The cost of installing infiltration trenches can vary depending on the site. Retrofitting them into existing urban areas may require more extensive work, but their compact design makes them a practical option for space-limited locations. To keep costs down, using locally sourced and affordable filter materials is a smart choice without sacrificing performance. Maintenance primarily involves routine inspections to prevent sediment buildup, which can clog the system and reduce infiltration rates.

Suitability for Maryland’s Climate and Soil

Maryland’s climate – with its mix of heavy rainstorms and occasional droughts – makes site-specific soil testing a must for determining how well infiltration trenches will perform. Designs should address the high levels of biochemical oxygen demand (BOD), total suspended sediments, and orthophosphates often found in urban streams in the area. Enhancing the filter media can further improve their ability to handle these challenges.

Pro Landscapes MD offers tailored drainage solutions and stormwater management services throughout central Maryland. Their expertise in local soil conditions and weather patterns ensures that systems like infiltration trenches are designed to handle the unique challenges of urban runoff. Whether it’s dealing with clay-heavy soils or unpredictable rainfall, their solutions are built to last.

This approach also sets the stage for other methods, like permeable pavements, which tackle stormwater management in a different way by addressing runoff at its source.

3. Permeable Pavements

Permeable pavements are changing the way urban areas manage stormwater. Instead of funneling rainwater into storm drains, these surfaces – like pervious concrete, porous asphalt, and interlocking pavers – allow water to soak directly into the ground. This not only reduces the strain on drainage systems but also filters pollutants right at the source.

These pavements use a layered design that lets water pass through the surface into a stone reservoir beneath. From there, the water is temporarily stored before gradually seeping into the soil. Along the way, contaminants are filtered out, making this a practical and eco-friendly solution for urban runoff.

Pollutant Removal Efficiency

Permeable pavements excel at filtering out pollutants that commonly contaminate urban waterways. Research shows they can remove 60-90% of total suspended solids and 50-80% of heavy metals like zinc and copper – pollutants often linked to vehicle traffic and industrial activities ^[1].

The secret lies in the materials used within the pavement structure. For example, studies in Stockholm found that adding materials like basalt and zeolites to permeable surfaces significantly boosts their ability to filter heavy metals from stormwater ^[1]. These materials enhance the system’s filtration by chemically binding and physically trapping contaminants as water moves through.

Runoff Volume Reduction

One of the standout benefits of permeable pavements is their ability to drastically cut stormwater runoff. Depending on soil type and pavement design, these systems can reduce runoff by 50-90% compared to traditional impervious surfaces ^[1][3]. This means less flooding, reduced erosion, and less stress on stormwater infrastructure.

The process mimics natural soil conditions, allowing water to infiltrate the ground even during heavy storms. By temporarily storing water in the stone base and releasing it slowly, these pavements reduce peak flow rates and help prevent downstream flooding.

Urban areas can benefit significantly by converting spaces like parking lots, sidewalks, and low-traffic streets into permeable surfaces. Every square foot transformed contributes to better stormwater management.

Installation and Maintenance Costs

While the initial costs of permeable pavements are higher, they often pay off in the long run. Installation typically costs between $8 and $16 per square foot, depending on materials and site conditions ^[4]. However, these upfront expenses can be balanced by reduced reliance on traditional stormwater infrastructure, such as storm pipes and detention ponds.

Over a 20-30 year period, the total costs may be similar to or slightly higher than conventional pavements. Still, the environmental advantages often make the investment worthwhile ^[4]. Some municipalities even offer incentives or reduced stormwater fees to encourage the use of permeable pavements.

Maintenance is straightforward but crucial. Regular vacuum sweeping or pressure washing – about once or twice a year – keeps the surface clear of debris and sediment. Without this upkeep, the pavement can clog and lose its ability to absorb water. Winter maintenance also requires adjustments; high salt use can harm infiltration and soil health, so alternatives like sand or other deicing materials are preferred.

Suitability for Maryland’s Climate and Soil

Maryland’s climate makes it a great candidate for permeable pavements. The state’s moderate to heavy rainfall provides plenty of opportunities for these systems to show their effectiveness in reducing runoff, while seasonal changes help prevent soil saturation ^[1][3].

Maryland’s varied soil types call for site-specific designs. In areas with well-draining soils, permeable pavements work efficiently with minimal modifications. For regions with clay-heavy or less permeable soils, engineered sub-base layers can be added to ensure proper water storage and gradual release.

The state’s freeze-thaw cycles require careful planning, but modern permeable pavements are built to handle these conditions ^[1][3]. Proper installation, including base preparation and edge restraints, ensures the pavement remains intact despite seasonal ground movement.

Pro Landscapes MD has extensive experience working with Maryland’s challenging soil and climate conditions. Their expertise ensures that permeable pavement projects are tailored to handle everything from heavy clay soils to the state’s seasonal weather patterns. Whether integrating these systems into broader stormwater management plans or addressing unique site challenges, their approach ensures long-lasting, effective solutions.

sbb-itb-843f8be

4. Sand Filters

Sand filters are a reliable way to treat urban stormwater runoff, using layers of sand to trap pollutants and initiate chemical reactions that clean the water before it flows into local waterways. These systems are especially useful in urban areas where space is tight, but efficient pollutant removal is a priority. By guiding water through specially chosen sand media, they capture contaminants like sediments, heavy metals, and hydrocarbons. Let’s explore how sand filters achieve such impressive results.

Pollutant Removal Efficiency

When it comes to removing total suspended solids (TSS), sand filters excel. They consistently remove over 80% of TSS, making them highly effective for cleaning murky runoff from urban areas ^[1]. This efficiency comes from the sand’s ability to physically trap particles as water moves through the filter bed.

Sand filters also tackle nutrients like phosphorus and nitrogen, as well as heavy metals such as lead, copper, and zinc, though their success in these areas depends on the type of sand media and the system’s design. For areas with specific pollutant challenges, like hydrocarbons from parking lots or industrial zones, sand filters can be upgraded with activated carbon or iron to boost performance ^[1].

Runoff Volume Reduction

While sand filters are excellent at improving water quality, they’re not designed to significantly reduce runoff volume ^[5]. Some infiltration may occur, but the primary focus is on treating water before it’s discharged.

This makes sand filters a great partner for other stormwater management solutions that handle volume control, such as bioretention cells or permeable pavements. Together, they create a complete system that addresses both water quality and quantity.

Installation and Maintenance Costs

Sand filters are a cost-efficient choice for urban stormwater treatment. Installation costs range from $3 to $10 per square foot, depending on factors like site conditions, system size, and whether the filter is above or below ground ^[4]. Compared to other filtration systems, they offer an affordable option for high-efficiency pollutant removal.

Maintenance involves moderate effort. Routine tasks include clearing sediment and debris from the surface, inspecting inlet and outlet structures, and replacing sand media when it clogs ^[4]. Regular upkeep – at least once a year and after major storms – is essential to keep the system running smoothly and maintain its high pollutant removal rates.

The most significant long-term cost comes from replacing the sand media as it becomes saturated with pollutants. However, this predictable maintenance schedule helps property owners plan for future expenses.

Suitability for Maryland’s Climate and Soil

Sand filters are a great fit for Maryland’s urban areas. They adapt well to the state’s temperate climate and compacted, low-permeability soils ^[1]. Since these systems don’t depend on infiltration into native soils, they can be installed even in areas with poor soil conditions.

Their performance remains steady across Maryland’s weather extremes, from humid summers to winter freeze-thaw cycles. This reliability makes them a solid choice for stormwater management throughout the state.

Maryland’s Department of the Environment has clear guidelines for designing, installing, and maintaining sand filters to ensure they meet pollutant removal standards ^[1]. Compliance with these standards is necessary for permitting in most areas.

Montgomery County has successfully used sand filters in both commercial and residential developments to treat runoff from parking lots and roadways. These installations have delivered the expected benefits, including high removal rates for suspended solids and moderate reductions in nutrients and metals, improving the quality of local waterways.

Pro Landscapes MD has extensive experience with sand filter projects in central Maryland. Their expertise in stormwater management and understanding of state regulations ensures that sand filters are installed correctly, function effectively, and meet all permitting requirements. This professional approach helps property owners address water quality challenges while staying compliant with local standards.

5. Vegetated Swales

Vegetated swales are shallow, plant-lined channels designed to slow down, filter, and absorb stormwater from urban surfaces. These natural drainage systems allow water to flow gently through vegetation, which helps pollutants settle out and infiltrate into the soil. They’re especially useful along roadsides and other linear infrastructure where conventional drainage systems might be expensive or difficult to implement ^[5].

Unlike mechanical filtration systems, vegetated swales rely on natural processes to clean stormwater. As water passes through, plants trap sediments, absorb nutrients, and soil particles bind with pollutants. This makes swales an appealing option for communities aiming to manage stormwater in a more sustainable way.

Pollutant Removal Efficiency

Vegetated swales are highly effective at filtering pollutants through natural sedimentation and filtration processes. They can remove up to 80% of total suspended solids (TSS), 50-80% of total phosphorus, and 30-60% of total nitrogen from urban runoff ^[1]. Factors like the type of vegetation, soil composition, and overall design play a big role in their performance.

As water flows slowly through the swale, heavier pollutants settle out, while plant roots and soil filter out suspended solids and nutrient-rich particles like phosphorus. This makes swales particularly effective at reducing pollutants that could harm downstream water bodies ^[5].

Heavy metals like lead, copper, and zinc also get trapped in the soil and vegetation, though removal rates depend on the swale’s design and upkeep. Between storms, the biological activity within the swale continues breaking down organic pollutants and cycling nutrients, further enhancing water quality. These processes not only filter pollutants but also help manage runoff volume.

Runoff Volume Reduction

In addition to cleaning stormwater, vegetated swales help reduce its volume. They can lower peak runoff volumes by 30-60%, with even greater reductions possible when combined with other green infrastructure techniques ^[1]. This reduction happens as water infiltrates into the soil and is temporarily stored within the swale.

The efficiency of volume reduction depends on soil type and slope. Swales built on well-draining soils allow for more infiltration, while those on compacted or clay soils focus more on slowing water flow for gradual release downstream. Their linear design makes them a practical and affordable option for managing urban runoff, particularly along roads and parking lots ^[5].

During heavy storms, swales act as temporary storage areas, holding water and releasing it slowly. This helps reduce peak flows, preventing downstream flooding and erosion – key benefits for any comprehensive stormwater management plan.

Installation and Maintenance Costs

Vegetated swales offer dual benefits – improving water quality and reducing runoff – without the need for complex construction. Installation costs typically range from $4 to $10 per square foot, making them one of the more budget-friendly filtration options ^[4]. Construction mainly involves excavation, grading, soil preparation, and planting.

Annual maintenance costs are low, averaging $0.50 to $2 per square foot ^[4]. Routine tasks include mowing, removing debris, and occasionally replanting vegetation. Unlike other systems like sand filters or bioretention cells, swales don’t require expensive media replacements or intricate structural repairs.

One challenge is managing erosion, especially on steeper slopes. Features like check dams may be needed in these areas, which can increase costs. However, a well-thought-out design can minimize erosion risks from the start.

Regular care is essential to keep swales working effectively. Clearing debris and managing vegetation ensures proper water flow, while inspecting side slopes helps prevent erosion ^[5].

Suitability for Maryland’s Climate and Soil

Vegetated swales are a key part of Maryland’s stormwater management efforts. They adapt well to the state’s variable rainfall and seasonal temperature changes ^[1]. Maryland’s moderate climate supports a wide range of native grasses and plants that thrive in swales.

Success in Maryland depends on choosing vegetation that can handle both dry periods and occasional flooding. Native grasses and wildflowers are ideal because they’re well-suited to local conditions and require less upkeep than non-native species.

Soil conditions are another critical factor. Swales perform best in soils with moderate infiltration rates that aren’t overly compacted ^[1]. In areas with poor soil, amendments or engineered soils may be needed to ensure proper performance.

Maryland’s regulatory framework encourages the use of vegetated swales as part of its green infrastructure strategy. State stormwater regulations recognize swales as effective tools, and many local governments offer incentives or streamlined permitting to promote their use.

Pro Landscapes MD has extensive experience designing and installing vegetated swales in central Maryland. Their expertise in native plant selection, grading techniques, and local regulations ensures that swales function efficiently while blending seamlessly into the surrounding landscape. They also assist property owners in navigating permitting processes, making compliance with stormwater management standards easier. This combination of natural design and local knowledge highlights Pro Landscapes MD’s dedication to sustainable stormwater solutions in Maryland.

Advantages and Disadvantages

When considering the technical aspects of stormwater filtration systems, it’s essential to weigh their benefits and limitations against Maryland’s unique environmental conditions. Each system comes with its own set of strengths and challenges, making it crucial to choose the right fit for managing urban runoff effectively. Here’s a closer look at the pros and cons of different systems, tailored to Maryland’s context.

Bioretention Cells (Rain Gardens) are excellent at tackling a wide range of pollutants through processes like filtration, biological uptake, and soil adsorption. These systems shine in areas with diverse pollution sources. However, in Maryland, where clay-heavy soils are common, installation costs can rise significantly if extensive soil amendments are required ^[1].

Infiltration Trenches offer a budget-friendly option by allowing stormwater to seep through layers of gravel and soil. That said, their efficiency drops in areas with clay-rich soils or high groundwater levels ^[1]. Additionally, they are prone to clogging from fine sediments, which may necessitate pretreatment measures, adding to their overall complexity.

Permeable Pavements double as both a functional surface and a stormwater management tool. They help reduce runoff and filter pollutants, making them especially useful in densely populated urban areas. On the flip side, they come with a higher initial cost and require more intensive maintenance, which can be a hurdle for some projects ^[1].

Sand Filters are highly reliable in removing pollutants like suspended solids and work well in sites with limited space. However, maintaining their efficiency demands frequent sediment removal and media replacement, which can lead to higher long-term maintenance expenses ^[1].

Vegetated Swales stand out for their affordability and ability to integrate seamlessly into the landscape. When planted with native Maryland species, they not only manage stormwater but also enhance the area’s visual appeal. Their downside? A lower ability to remove pollutants, meaning they are best used as part of a larger treatment system rather than a standalone solution ^[1].

Maryland’s local conditions play a significant role in how these systems perform. For example, freeze-thaw cycles can accelerate wear on permeable pavements and infiltration trenches. Meanwhile, bioretention cells and vegetated swales, especially when planted with native species, tend to handle seasonal changes more effectively.

Rainfall variability also calls for adaptable systems. Bioretention cells and vegetated swales excel in flexibility due to their plant-based designs, while sand filters deliver steady performance regardless of weather fluctuations. Soil type is another critical factor; systems relying on infiltration may require engineered soils or additional preparation, whereas vegetated swales usually perform well with proper grading and thoughtful plant selection.

The table above summarizes key performance details and helps guide decision-making for stormwater management in Maryland. Pro Landscapes MD combines this technical insight with local expertise to deliver tailored solutions that maximize efficiency and effectiveness.

Conclusion

Selecting the right stormwater filtration system for your Maryland property starts with understanding your site’s specific conditions and partnering with professionals familiar with local regulations. Options like bioretention cells and vegetated swales are popular among homeowners, as they not only manage pollutants effectively but also enhance the overall look of your landscape. Designed to meet Maryland’s unique environmental needs, these systems are well-suited to handle urban runoff challenges.

The choice of system largely depends on factors like property size and soil type. For smaller lots, bioretention cells are often the best fit. On larger properties, vegetated swales or infiltration trenches may be more appropriate. Maryland’s characteristic clay-heavy soils might require modifications, such as soil amendments or engineered solutions, to ensure the system performs as intended.

Budget planning should also account for more than just the upfront costs. For instance, while permeable pavements may involve higher initial expenses, they serve dual purposes as functional surfaces and stormwater solutions. Sand filters are reliable but come with ongoing maintenance needs. On the other hand, vegetated swales are often the most budget-friendly, especially when planted with native species that thrive in Maryland’s environment. Companies like Pro Landscapes MD specialize in creating tailored designs that meet the technical demands of central Maryland’s diverse regions, from suburban neighborhoods in Howard County to urban areas in Montgomery County. Professional installation ensures these systems meet regulatory standards and perform efficiently, while routine maintenance protects your investment over time.

Each filtration system has its strengths, and the key to success lies in matching the right solution to your property’s requirements. By investing in expert consultation, thorough site assessments, and custom system designs, you can implement a solution that not only safeguards your property but also helps protect the Chesapeake Bay watershed for future generations.

FAQs

How can I choose the right stormwater filtration system for my property in Maryland?

When it comes to selecting the best stormwater filtration system for your property, several factors come into play – such as the size of your land, the type of soil, and any unique drainage challenges you might encounter. Pro Landscapes MD offers specialized stormwater management solutions and can assess your property to recommend a system that fits your specific needs.

With their in-depth knowledge, they ensure the system is installed correctly and functions efficiently, safeguarding your landscape from water damage and reducing pollution risks. Contact their team for expert advice and to explore environmentally friendly options tailored to your property.

What are the maintenance needs and costs for different stormwater filtration systems?

The long-term upkeep and expenses for stormwater filtration systems largely hinge on the system’s type and design. Routine maintenance might involve removing debris, checking for damage, and confirming that water flows as intended. Costs can differ significantly depending on factors like the system’s size and how often maintenance is required.

Pro Landscapes MD offers expert solutions for stormwater management, including French drains, dry riverbeds, and grading services. Their team specializes in designing and maintaining systems customized to fit your property’s specific needs, ensuring effective water management and landscape protection.

How do bioretention cells and vegetated swales help protect the Chesapeake Bay from urban runoff pollution?

Bioretention cells and vegetated swales are essential tools for cleaning up urban runoff before it flows into waterways. These systems work by capturing stormwater and letting it seep into the ground, where harmful substances like sediment, excess nutrients, and chemicals are naturally filtered out.

By controlling runoff in this way, these methods help limit the pollution entering the Chesapeake Bay, contributing to the overall health of its ecosystem. Pro Landscapes MD focuses on stormwater management solutions, offering the installation of these systems to design landscapes that are both sustainable and environmentally conscious.
