Urban areas face a growing problem: too much stormwater runoff due to impervious surfaces like concrete and compacted soils. This runoff leads to flooding, pollution, and property damage. Traditional drainage systems often fail to address the root causes, simply redirecting water without treating it. Urban soil restoration offers a better solution by improving the ground’s ability to absorb and filter water, reducing runoff and pollution.
Key Takeaways:
- Urban Runoff Problem: Cities like Baltimore generate excessive runoff, with over 45% of impervious surfaces contributing to flooding and pollution.
- Environmental Impact: Runoff carries pollutants like nitrogen, phosphorus, and bacteria into waterways, harming ecosystems and creating dead zones.
- Soil Compaction: Urban development compacts soil, reducing its ability to absorb water and worsening runoff issues.
- Restoration Benefits: Healthy soils absorb more rainwater, reduce flooding, and filter pollutants naturally.
- Practical Solutions: Techniques like adding organic matter, loosening soil, and planting deep-rooted vegetation improve soil health.
- Integrated Systems: Combining soil restoration with rain gardens, bioswales, and permeable surfaces enhances stormwater management.
Restoring urban soils not only addresses stormwater challenges but also creates healthier, more resilient urban spaces.

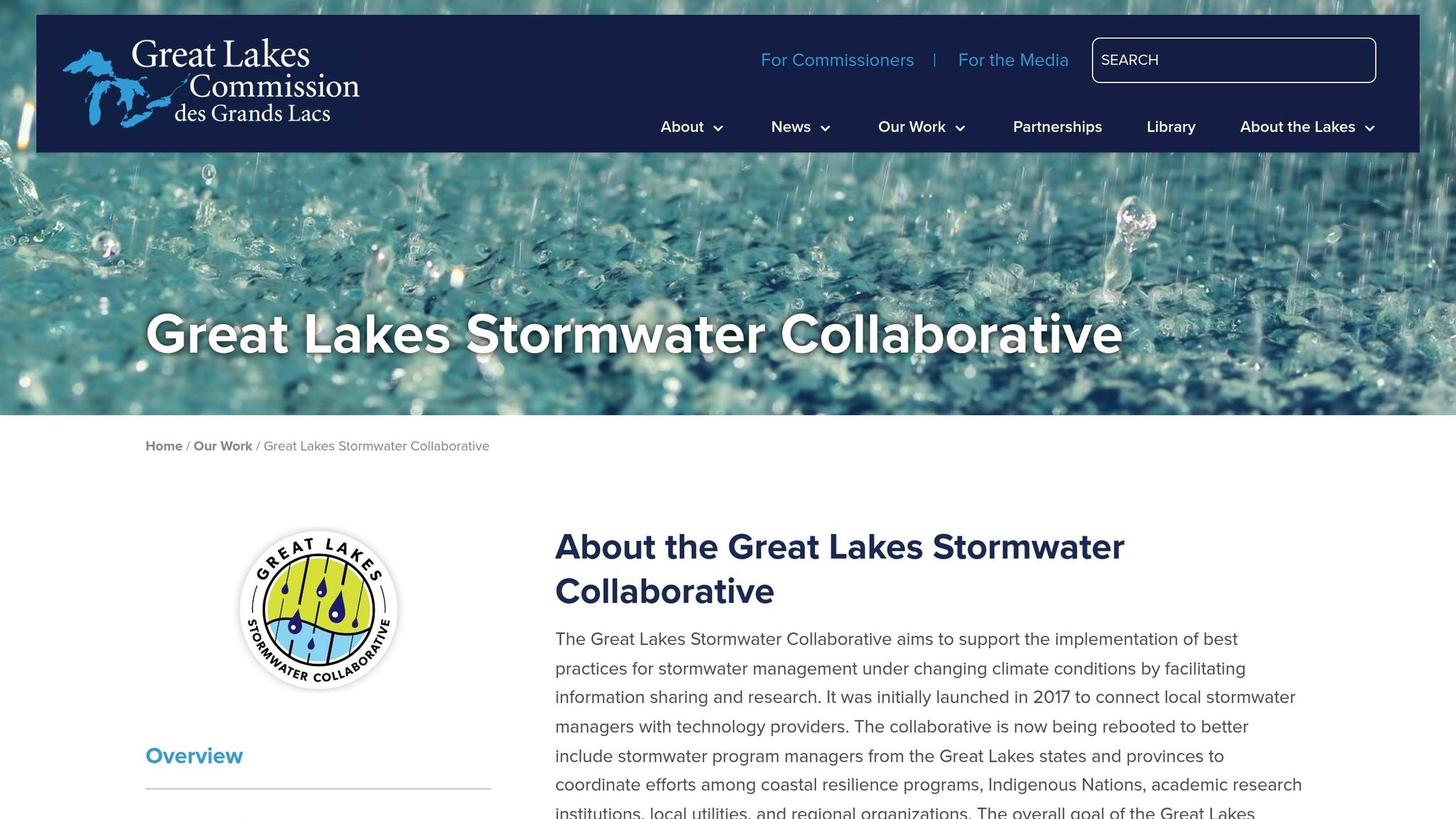

Great Lakes Stormwater Collaborative Webinar: Soil Decompaction and Amendment
Urban Stormwater Runoff Problems
For Maryland property owners and communities, tackling flooding and water quality challenges requires a clear understanding of what drives stormwater runoff in urban areas. The shift from natural landscapes to developed ones has created a host of environmental and infrastructure issues.
What Causes Urban Stormwater Runoff
The main driver of urban stormwater runoff is the rise of impervious surfaces – places where water can’t seep into the ground. Think roads, rooftops, sidewalks, parking lots, and driveways. These surfaces block rainwater and snowmelt from naturally soaking into the soil [1][2][3][4].
In Baltimore, this issue is especially severe. Over 45% of the city is covered by pavement and other impervious surfaces [3]. Unlike natural areas, which can absorb 80-90% of rainfall, nearly all rain on concrete turns into runoff [5]. To put it into perspective, just one inch of rain falling on an acre of impervious surface generates 27,000 gallons of runoff [5].
New construction only adds to the problem [1]. Without natural infiltration, the volume and speed of water flowing across the land increase dramatically [1], creating ripple effects throughout watersheds. Between 1990 and 2007, impervious surfaces grew by 34%, while the population increased by just 18% [6]. This disconnect has set the stage for significant environmental and structural challenges.
Damage to Environment and Property
The effects of excessive runoff in central Maryland are both environmental and economic, impacting ecosystems and communities alike.
Environmental damage is one of the most visible consequences. Urban stormwater runoff has become the leading source of nutrient and sediment pollution in Baltimore’s waterways and the Chesapeake Bay [3]. This runoff, often untreated, carries a toxic mix of trash, bacteria, heavy metals, oil, pesticides, fertilizers, and other pollutants directly into streams [3][5][6].
"Stormwater runoff is the leading cause of nutrient and sediment pollution in Baltimore’s waterways." – Blue Water Baltimore [3]
The numbers paint a troubling picture. According to the Chesapeake Bay Program‘s Watershed Model, stormwater accounts for 17% of nitrogen loads, 17% of phosphorus loads, and 9% of sediment loads in the Chesapeake Bay [6]. In 2023, stormwater from developed areas contributed 16% of nitrogen, 18% of phosphorus, and 9% of sediment pollution [6].
The Maryland Department of the Environment has found copper in 92% of urban runoff samples, with 53% reaching levels toxic to aquatic life [5]. Urban runoff also contains fecal coliform bacteria levels 20 to 40 times higher than the safe standard for swimming [7].
To grasp the scale of nutrient pollution, consider this: one pound of phosphorus can trigger 300-500 pounds of algae growth [7]. This algae boom depletes oxygen in waterways, creating dead zones where aquatic life struggles to survive.
In Baltimore County’s Lake Roland, pollution from chlordane – a pesticide once used in nearby homes – has made fish consumption risky for anglers [5]. Meanwhile, Baltimore’s Inner Harbor faces constant cleanup efforts. The "Mr. Trash Wheel" family, which removes debris from waterways, collected 1,608 tons of trash between May 2014 and January 2021. The newest addition, Gwynnda the Good Wheel, can collect around 300 tons of trash annually from Gwynns Falls [6].
Property and infrastructure damage further compounds the problem. Rapid stormwater flow overwhelms drainage systems, leading to basement flooding, road washouts, and expensive repairs. Erosion caused by concentrated runoff destroys foundations, damages landscaping, and creates safety risks.
Public health risks also arise from contaminated runoff, which can compromise drinking water supplies and recreational areas. Runoff carrying bacteria, heavy metals, and chemicals poses serious threats, especially in urban areas where stormwater systems discharge near residential zones.
Social equity issues add another layer of concern. Dr. Marccus Hendricks, Director of the Stormwater Infrastructure Resilience and Justice (SIRJ) Lab at the University of Maryland, highlights that "lower income communities, particularly of color, are expected to face worse stormwater problems in the future" [8]. These neighborhoods often lack the resources to invest in proper stormwater management, leaving them disproportionately affected by flooding and pollution.
The situation is only getting worse. Climate change is increasing rainfall, which means more runoff [3][5]. At the same time, development continues to expand, replacing natural filters like forests and wetlands with more parking lots, roads, and rooftops [5][6].
"Polluted runoff is one of the most harmful sources of pollution to the Bay and its waters. And much of it starts right in the urban and suburban neighborhoods where we live." – Chesapeake Bay Foundation [5]
These challenges underscore the urgent need for better approaches to managing stormwater, moving beyond traditional systems to address the growing crisis.
Problems with Standard Stormwater Systems
Traditional stormwater systems are designed to move water quickly, but they fail to address the root causes of excessive runoff.
Flaws in Standard Infrastructure
Conventional stormwater systems – such as gutters, storm drains, underground pipes, and detention basins – are built to collect and redirect water as fast as possible. While this might prevent immediate flooding in one area, it doesn’t reduce the overall amount of runoff. Instead, it shifts the problem elsewhere. For instance, detention basins temporarily hold stormwater but don’t address the pollutants in the water when it’s eventually released.
Pipe-based systems come with their own issues. As water rushes through storm drains, it gains speed. When this high-velocity water exits the system, it can erode stream banks and cause downstream damage, creating more environmental problems.
How Soil Damage Makes Problems Worse
Urban development doesn’t just increase the number of impervious surfaces like roads and rooftops – it also damages soils, which are naturally designed to absorb and filter water. This makes managing stormwater even harder.
One major issue is soil compaction. Activities like heavy construction, constant foot traffic, and the weight of buildings compress the soil, reducing the spaces between particles where water would normally seep through [9][10]. This compaction turns soil denser, meaning even green spaces like lawns and parks may absorb very little rainwater.
When compacted soil can’t absorb water effectively, more rain becomes surface runoff. This increases the burden on stormwater systems and raises the risk of flash flooding [9]. Compacted soils also speed up surface runoff, making it harder for drainage systems to keep up [9].
Compaction doesn’t just affect water absorption – it also causes biological damage. Dense soils limit oxygen flow, which stunts plant root growth and disrupts microbial activity [9]. Healthy plants and microbes play a key role in filtering out pollutants from water. Without them, more contaminants end up in stormwater systems [9]. Compacted soils also block water from naturally seeping into the ground, reducing groundwater recharge [9]. This means less water is stored underground, removing a natural buffer against flooding.
Urban Soil Restoration for Stormwater Control
Fixing compacted and degraded urban soils is a smart way to manage stormwater. Instead of channeling rainwater through pipes, urban soil restoration boosts the land’s natural ability to soak up and clean water.
How Healthy Soils Make a Difference
Healthy soils act like sponges, soaking up rainwater and cutting down on runoff. When soil has a good structure, plenty of organic material, and isn’t overly compacted, it can handle water much better. For instance, improving urban soils can increase the initial infiltration rate by 53%, leading to a 45% improvement in total infiltration and cutting stormwater runoff by 51% [11]. In areas with healthy, vegetated soils, only 5% to 15% of rainfall turns into surface runoff, compared to about 60% in areas without vegetation [11].
Ways to Restore Soil
Restoring soil health focuses on improving its structure, texture, moisture, organic content, and reducing compaction [11]. Here’s how it’s done:
- Loosen compacted soil with tools like core aerators or mechanical equipment.
- Add organic materials such as compost or aged manure to improve soil texture and water retention.
- Use mulch to conserve moisture and slowly add organic matter as it breaks down.
- Plant deep-rooted vegetation to naturally enhance soil structure and create pathways for water to seep in.
- Limit soil disturbance during landscaping to avoid further compaction.
Maryland’s Approach to Soil Restoration
Maryland’s mix of clay and sandy soils, along with its hot, humid summers and unpredictable rainfall, calls for specific strategies. By focusing on methods that increase organic matter and reduce compaction, Maryland can achieve better water absorption in urban areas. For example, urban green spaces in Beijing managed to conserve 154 million cubic meters of rainwater, reducing runoff by 2,494 cubic meters per hectare [11]. While Maryland’s urban environments differ in size, similar soil restoration efforts could lead to meaningful stormwater management improvements. These tailored strategies are essential for creating effective urban stormwater solutions.
sbb-itb-843f8be
Complete Stormwater Management Solutions
Combining soil restoration with natural water management methods offers an effective way to tackle stormwater challenges. Maryland’s Environmental Site Design mandate emphasizes managing stormwater at its source by mimicking the natural water cycle before development occurred [13]. Below, we’ll explore how natural systems and engineered solutions work together to improve urban stormwater control.
Natural Water Management Systems
Bioretention systems – like rain gardens, bioswales, and constructed wetlands – blend vegetation with engineered soils to filter and manage stormwater. These systems thrive on restored soils, as healthy soil enhances water infiltration and provides greater design flexibility.
- Rain gardens are shallow depressions filled with native plants and amended soils. They collect runoff from roofs, driveways, and other hard surfaces. Healthy, restored soil beneath these gardens improves water infiltration, helping to reduce flooding and filter out pollutants.
- Bioswales act as vegetated channels, slowing and filtering stormwater as it flows toward storm drains or waterways. When paired with soil restoration techniques like decompaction and organic matter addition, bioswales can handle larger water volumes while removing sediments and contaminants.
- Constructed wetlands create either permanent or temporary water features that naturally treat stormwater through biological processes. Their success depends on permeable, healthy soils that support plant life and maintain appropriate water levels.
A notable example of this approach is a project in Baltimore, Maryland, where suburban subsoiling transformed an asphalt playground into a stabilized turf field. This effort earned impervious area reduction credit under the city’s federal stormwater permit, showcasing how soil restoration can align with broader stormwater goals [12].
Permeable Surfaces and Engineered Soils
Engineered surfaces complement natural systems, extending stormwater management capabilities. When paired with restored soils, these surfaces not only manage runoff but also help maintain soil health over time. Permeable pavers and engineered soils are key components in this strategy.
- Permeable pavers allow water to seep through joints between pavers or through the pavers themselves. Their performance depends on the engineered soil and aggregate base beneath them. When this foundation includes restored soil with proper organic content and structure, water infiltration improves significantly.
- Environmental pavers take this a step further by incorporating recycled materials and supporting vegetation growth. These systems combine the durability of traditional hardscaping with the water management benefits of restored soil. Pro Landscapes MD specializes in installing these pavers, creating eco-friendly outdoor spaces that address stormwater challenges across central Maryland.
Engineered soil mixes are another critical element, typically blending sand, organic compost, and native soil. These mixes balance drainage and water retention, making them suitable for various applications. When placed beneath permeable surfaces or within bioretention systems, these soils can be tailored to local conditions and climate patterns.
By integrating restored soils with engineered systems, redundancy is built into the design. If one component becomes less effective – due to clogging or settling – other elements can still manage stormwater effectively.
This holistic approach supports Maryland’s goals to protect urban areas from runoff pollution, flooding, and the growing risks of intense storms linked to climate change. Combining soil restoration, natural water management systems, and permeable surfaces allows property owners to create comprehensive solutions that address multiple stormwater challenges at once.
Working with Professionals for Best Results
Successfully managing stormwater through soil restoration requires both expert installation and consistent maintenance. Professionals with knowledge in soil science, hydrology, and landscape engineering ensure systems are designed and implemented to perform efficiently from the start. This expertise is essential for developing solutions tailored to specific regional conditions.

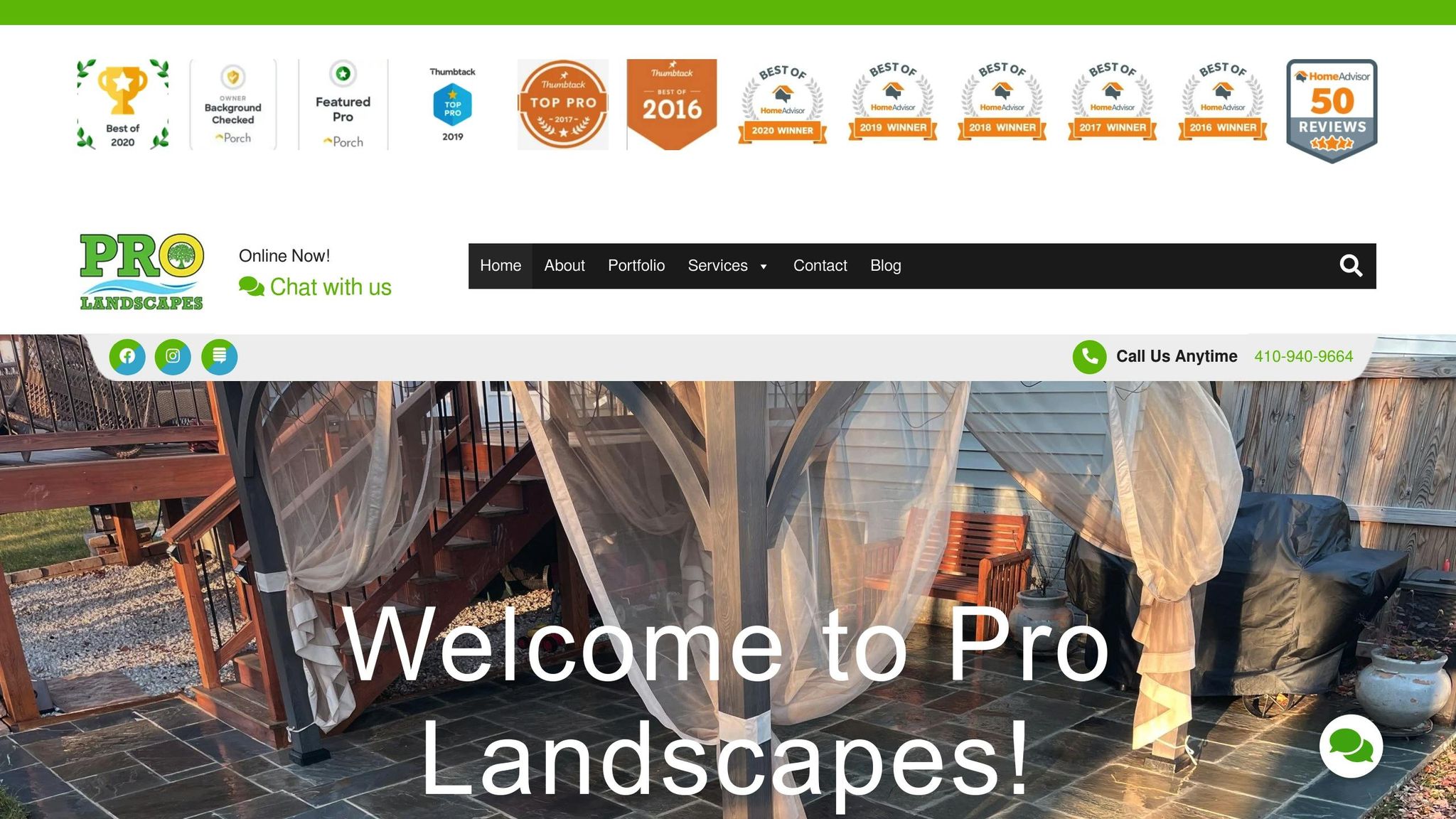

Pro Landscapes MD‘s Services
Pro Landscapes MD offers a comprehensive approach to soil restoration and drainage solutions, addressing every stage of the water cycle. Their services include soil assessments, drainage installations, and long-term maintenance. From placing drain pipes and French drains to creating dry riverbeds, their work focuses on improving water flow while promoting healthy soil and managing runoff effectively.
The company customizes its systems based on the unique characteristics of Maryland’s diverse soils and precipitation patterns. By analyzing soil composition, drainage patterns, and climate conditions, Pro Landscapes MD ensures each solution fits the local environment.
One standout service is their use of environmental pavers, which are eco-friendly hardscaping materials designed to support sustainable stormwater management. These pavers allow water to infiltrate the ground while providing durable surfaces for patios, walkways, and driveways. When paired with properly restored soils, they not only serve functional purposes but also help reduce runoff and improve water absorption.
In addition to hardscaping, Pro Landscapes MD works with expert horticulturists to select vegetation that balances aesthetics with water management needs. Native plants for bioretention areas are carefully chosen to thrive in local conditions while filtering pollutants and controlling erosion. This attention to plant-soil interactions is especially critical for features like rain gardens and bioswales.
Maintaining Your System
The long-term success of stormwater management and soil restoration systems relies heavily on regular maintenance. Even the most well-designed systems require care to maintain their effectiveness, making professional upkeep a smart choice for property owners.
Soil health monitoring and vegetation care are key components of maintenance. Restored soils benefit from periodic testing and organic amendments, such as compost or biochar, every few years to preserve their structure and water absorption capabilities. Maintenance teams also ensure that plants with strong root systems and pollutant-filtering foliage are thriving.
Routine inspections and cleaning help prevent issues that can undermine the system’s performance. For example, French drains and other drainage features need to be cleared of sediment periodically, while bioretention areas require mulch replacement and surface cultivation to avoid compaction that hinders water infiltration.
Seasonal care is another critical aspect of maintenance, particularly in Maryland’s varied climate. Spring tasks often involve assessing winter damage and preparing for heavy rains, while summer focuses on keeping plants healthy during dry spells and maintaining mulch coverage. In the fall, maintenance includes clearing leaves from drainage areas and preparing plants for dormancy.
Professional services also provide performance monitoring to ensure systems continue meeting stormwater management goals. This involves checking infiltration rates, looking for signs of erosion or settling, and evaluating how well vegetation is establishing. Early detection of issues allows for timely interventions, reducing the risk of costly repairs.
Investing in professional maintenance pays off by extending the life of these systems and ensuring consistent performance. A well-maintained stormwater management system can last for decades, while neglected systems often require expensive repairs or replacements within a few years. Regular professional care not only preserves the system’s functionality but also contributes to a more resilient urban environment.
Building Better Urban Landscapes
Urban soil restoration is changing the way we manage stormwater by tapping into natural processes to rejuvenate degraded soils. This method turns damaged soil into a powerful tool for reducing flooding, minimizing pollution, and addressing other environmental challenges.
Restored soils act like nature’s filter, cleaning water, cutting down on runoff pollution, and nurturing local ecosystems. By doing so, they help lower the risk of floods while bringing back the intricate soil food webs that are key to ecological recovery [14]. Healthy soils also make cities more vibrant – supporting lush parks, thriving trees, and urban agriculture, all of which enhance a city’s beauty and livability [14].
In Maryland, property owners benefit from customized soil restoration strategies that are tailored to local climates and soil conditions. Pro Landscapes MD provides a range of integrated services, such as soil assessments, drainage solutions, and the installation of environmental pavers, to address challenges posed by everything from dense clay to sandy soils. These targeted approaches help create urban spaces that are not only resilient but also sustainable.
Investing in soil health leads to landscapes that are both visually appealing and highly functional in communities like Ellicott City, Bethesda, and Columbia.
FAQs
How does restoring urban soil help manage stormwater runoff more effectively than traditional drainage systems?
Restoring urban soil can significantly improve how stormwater is managed by boosting the soil’s capacity to soak up and hold water. This process not only reduces runoff but also naturally filters out pollutants before they can reach nearby waterways.
Traditional drainage systems depend on infrastructure like pipes and drains to swiftly move water away. In contrast, soil restoration encourages water to infiltrate the ground naturally. This approach helps curb flooding, reduces erosion, replenishes groundwater, and enhances water quality in urban settings. By aligning with natural processes, soil restoration provides a sustainable, long-term answer to stormwater issues.
What are simple ways property owners can restore soil and manage stormwater in urban areas?
Property owners have several options to improve urban soil and handle stormwater effectively. Adding organic matter like compost can enhance soil structure, increase its ability to hold water, and improve infiltration. Planting native vegetation or designing rain gardens can also play a big role in absorbing excess water while benefiting local ecosystems.
Another practical approach is using permeable surfaces – such as permeable pavers or gravel – which help reduce runoff by allowing water to seep into the ground. These measures not only tackle stormwater challenges but also contribute to creating greener and healthier urban spaces.
How does climate change affect urban soil restoration for stormwater management?
Climate change is causing storms to become both more frequent and more intense. This means more stormwater runoff and higher peak flows, which can overwhelm existing stormwater systems. In urban areas packed with impervious surfaces like roads and buildings, this creates an even bigger challenge for soil restoration efforts.
On top of that, stronger storms can erode the vegetative ground cover that plays a key role in soil restoration. Without this cover, the soil struggles to filter pollutants and absorb water effectively. Over time, this can lead to increased flooding, declining water quality, and difficulties in maintaining healthy urban environments. Tackling these challenges head-on is essential to keeping soil restoration a reliable solution for managing stormwater in the face of a shifting climate.
