Frozen sump pump lines can cause basement flooding and costly repairs. To avoid this, follow these six steps to keep your system running during freezing temperatures:

• Insulate Discharge Lines: Use foam insulation and heat tape to keep pipes warm.
• Bury Pipes Below Frost Line: Ensure pipes are below the frost line and sloped properly.
• Install a Freeze Guard: Redirect water when lines freeze to prevent damage.
• Use Heating Cables: Maintain pipe temperatures above freezing with self-regulating cables.
• Keep Water Moving: Regularly check and clean the system to prevent stagnation.
• Prepare for Emergencies: Have supplies like foam insulation, heat tape, and heat lamps ready.

These measures can help protect your sump pump system and prevent winter damage. Keep reading for detailed steps and maintenance tips.

How To Prevent Sump Pump Discharge Lines From Freezing

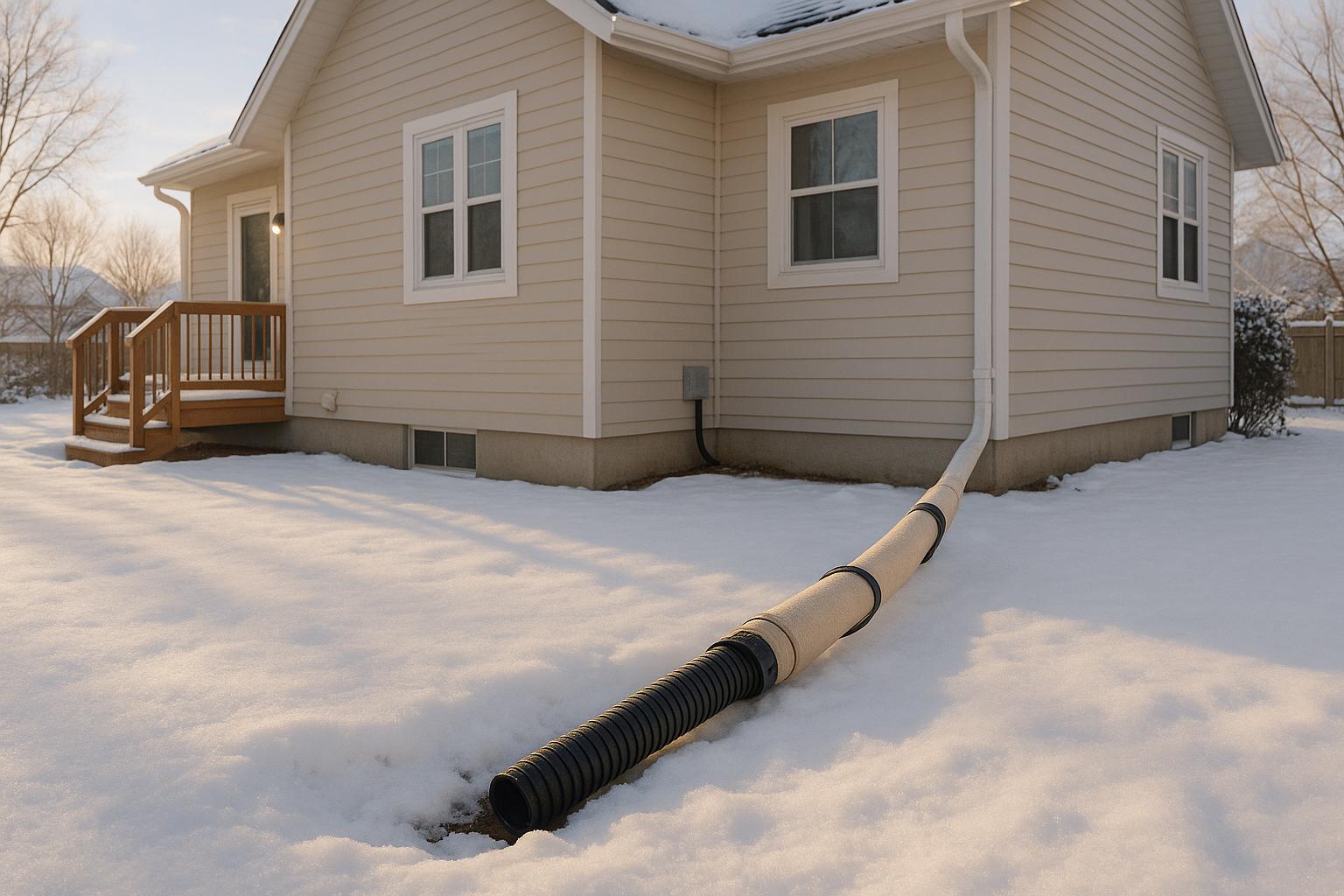

1. Add Insulation to Discharge Lines

Protect your sump pump discharge lines from freezing by insulating them properly. This keeps water flowing smoothly and helps prevent costly water damage to your home.

Wrap Pipes with Foam Insulation

Use outdoor-rated foam insulation sleeves that fit snugly around your pipes. Here’s how to do it:

• Clean and measure the pipe to ensure the insulation fits correctly.
• Cut the insulation sleeve to the proper length.
• Wrap the sleeve around the pipe, making sure all exposed areas are covered.
• Seal the seams with waterproof tape to keep everything secure.

For added protection, consider pairing this method with heating solutions.

Use Heat Tape for Additional Protection

Heat tape is another effective way to keep pipes from freezing. It works by maintaining the temperature of the pipe above freezing levels. Follow these steps:

• Choose UL-listed heat tape that matches your pipe size.
• Make sure the pipe is clean and dry before installation.
• Follow the manufacturer’s guidelines carefully during setup.
• Plug the heat tape into a GFCI outlet to ensure safety.

Combining foam insulation with heat tape creates a reliable barrier against freezing temperatures. This dual approach helps safeguard your system in cold weather.

2. Install Pipes Below the Frost Line

To prevent freezing, sump pump lines must be installed below the frost line. Check with your local building authorities to determine the frost line in your area and ensure compliance with local codes. Proper depth and slope design are essential for effective operation.

Ensure a Proper Drainage Slope

A steady downhill slope is crucial to direct water away from your foundation and avoid pooling or freezing in the pipe. Here’s what to keep in mind:

• Use a minimum slope of 1/4 inch per linear foot.
• Avoid dips or low spots to maintain a continuous downhill flow.
• Position the discharge point at least 20 feet away from your foundation.

For reference, here’s a quick guide to drainage slope measurements:

Professional installation ensures that discharge lines are properly sloped and buried at the correct depth, safeguarding your sump pump system and foundation against winter damage. If you’re in the Baltimore or Washington, DC area, consider contacting Pro Landscapes MD for expert assistance.

3. Add a Freeze Guard Backup

A freeze guard is a device that redirects water when discharge lines freeze, helping to prevent basement flooding and reduce damage to your pump. Alongside insulation and proper pipe setup, it provides an extra layer of protection.

How Freeze Guards Work

Automatic Functionality
If ice blocks the discharge lines, built-in channels reroute water around the frozen sections. This keeps the system running and avoids pressure-related damage^[2].

Longer Equipment Lifespan
Freeze guards also help minimize wear on your pump, cutting down service calls by 75% and adding an extra 2–3 years to the pump’s life expectancy^[1].

Get It Professionally Installed
Proper installation is key. This involves integrating the freeze guard with discharge lines, drilling through foundation walls, ensuring proper venting, and aligning slopes correctly. For a professional job, contact Pro Landscapes MD. Some advanced models come with tapered chambers to speed up water flow and can handle up to 4,500 gallons per hour, making them highly effective even in freezing conditions.

"When combined with pipe insulation and heating cables, freeze guards reduce ice-related service calls by 92% according to Basement Systems Inc. data. They serve as critical backups when primary prevention methods fail during extreme cold snaps."^[1][2]

sbb-itb-843f8be

4. Install Heating Cables

Heating cables help keep sump pump discharge lines from freezing by maintaining temperatures at or above 40°F, even in harsh winter conditions. These cables automatically adjust their heat output to prevent ice blockages. For internal installations, self-regulating heating cables typically use 5–8 watts per foot, costing about $0.02–$0.04 per hour for a standard 20-foot line^[5]. When temperatures are above freezing, they can reduce energy use by 30–50%^[3].

Steps for Heating Cable Setup

Installation Basics
Heating cables need to be installed based on the type of pipe to work effectively. Here’s a quick reference:

Key Installation Tips
Position the cables along the lower part of the pipe (at the 4 or 8 o’clock positions) to distribute heat evenly^[7]. Secure the cables every 12 inches to ensure full contact with the pipe^[10]. Using insulation along with self-regulating cables can save 15–25% more energy compared to constant-wattage systems^[8][9].

Safety and Maintenance
For safe operation, always connect heating cables to a GFCI-protected outlet. Follow these maintenance steps to keep the system running efficiently:

• Test GFCI outlets every three months.
• Inspect cables monthly for any damage, including issues caused by rodents.
• Remove snow and ice from discharge points.
• Check that the cables are working when temperatures drop below 38°F^[4][6].

Using heating cables alongside insulation offers reliable protection against freezing. Professional installation, which costs between $200 and $500, ensures proper integration with your sump pump system and compliance with code requirements^[5][6]. This setup adds another layer of protection to your system, helping it withstand winter conditions.

5. Keep Water Moving

Keeping water in motion helps prevent ice from forming in sump pump discharge lines. Stagnant water can freeze, leading to blockages and potential damage to your system.

Reduce Pump Strain

Once your lines are insulated and monitored, maintaining steady water flow can help ease the load on your pump. Here are a few actions you can take to keep water moving efficiently:

Suggested Maintenance: Clear the discharge area weekly; perform other checks monthly.

Make sure the discharge point’s slope allows water to flow freely, minimizing strain on the pump. These steps work alongside insulation and monitoring to extend the life of your pump system.

Perform Monthly Inspections

Regular monthly checks can help you catch potential freezing issues early. Focus on these key areas:

1. Test the float mechanism: Make sure the float moves freely and activates the pump properly.
2. Inspect pipe connections: Check that all joints are secure and tightly connected.
3. Assess water flow: Confirm that water is exiting the discharge point without pooling or backing up.

These inspections, paired with consistent maintenance, will help protect your sump pump system from freezing and other issues.

6. Add Emergency Pipe Protection

Even with insulation, proper installation, and regular maintenance, unexpected cold snaps can still pose a threat to your pipes. Having emergency measures and supplies ready can help you prevent costly freeze damage when temperatures plummet.

Essential Emergency Supplies

Here’s a quick list of items to keep on hand for pipe protection, along with their purposes and approximate costs:

Quick Protection Tips

When temperatures drop below 20°F (-6.7°C), take immediate action using these methods:

• Foam Insulation: Wrap exposed pipes with foam insulation sleeves. These pre-slit sleeves are easy to apply and can handle temperatures as low as -40°F. Secure any seams with duct tape for added protection.
• Towels or Blankets: For vertical or irregular pipe sections, wrap them in old towels or blankets. Use duct tape to hold everything in place. While temporary, this can protect pipes for 24–48 hours in moderately cold weather.

Using Heat Safely

If pipes are already at risk of freezing, heat can help. Follow these safety guidelines:

• Keep heat lamps 12–18 inches away from pipes.
• Use a hair dryer on a low setting for 10–15 minutes at a time.
• Never leave heating devices unattended.
• Ensure electrical devices stay far from water to avoid hazards.

For example, during the 2024 polar vortex, a homeowner in Ellicott City, MD successfully combined foam insulation, heat lamps, and a tarp to prevent pipe freezing even when temperatures dropped to -5°F.

Monitor Conditions Closely

Once emergency measures are in place, keep an eye on temperature changes. Pay attention to these critical thresholds:

• Temperatures below 20°F (-6.7°C)
• Wind chills reaching -10°F (-23°C)
• Hard Freeze Warnings from the National Weather Service

These methods usually provide 2–3 days of protection, but pipes should be checked hourly during extreme cold. Look for signs like ice buildup or reduced water flow. Research shows that insulated pipes freeze three times slower than uncovered ones at 20°F, making these steps essential during sudden cold spells.

Consider storing all your supplies in a dedicated pipe protection kit to stay prepared for winter emergencies.

Conclusion: Steps for Winter Pump Protection

Avoid frozen sump pump lines to prevent basement flooding and expensive water damage during harsh winters. Following these steps can help keep your system running smoothly:

• Insulation: Wrap discharge lines with foam insulation and heat tape.
• Proper Installation: Place pipes below the frost line and ensure they have the right slope for drainage.
• Backup Measures: Add freeze guards and heating cables for extra protection.
• Regular Maintenance: Check the system periodically to catch potential issues early.
• Emergency Preparedness: Keep essential supplies on hand for quick fixes.

These precautions help create a reliable system that can handle freezing temperatures. For Maryland homeowners, professional installation and maintenance make a big difference. Pro Landscapes MD offers tailored drainage solutions and winter-proofing systems to meet local needs.

It’s much cheaper to prevent problems than to deal with emergency repairs. Don’t wait for the cold to hit – reach out to Pro Landscapes MD for expert sump pump protection in Baltimore and Washington, DC.

FAQs

How can I find the frost line depth in my area to properly install sump pump lines?

To determine the frost line depth in your area, you can check with your local building department or consult regional frost line maps, which are often available online. The frost line varies based on location, with colder climates generally having deeper frost lines.

For accurate sump pump line installation, ensure the discharge lines are buried below the frost line to prevent freezing during winter. If you’re unsure, consult a professional to help with proper installation and drainage solutions tailored to your property’s needs.

How can I tell if my sump pump lines are at risk of freezing, and what can I do to fix it quickly?

If your sump pump lines are at risk of freezing, you may notice reduced water flow, ice buildup around the discharge area, or your sump pump running continuously without effectively removing water. These are clear signs that the lines may be blocked by ice.

To address this quickly, you can:

• Insulate the discharge line using foam pipe insulation to prevent freezing.
• Clear any debris or blockages from the line to ensure proper drainage.
• Redirect the discharge point to an area with better drainage and away from freezing-prone spots.

Taking these steps promptly can prevent further damage and keep your sump pump functioning properly during cold weather.

What maintenance steps can I take in winter to keep my sump pump from freezing?

To prevent your sump pump system from freezing during winter, follow these essential tips:

1. Insulate the discharge line to protect it from freezing temperatures. Use foam pipe insulation or a heat cable for added protection.
2. Ensure the discharge line is sloped properly to allow water to flow out completely, preventing standing water from freezing.
3. Extend the discharge line far enough from your home to avoid water pooling and freezing near the foundation.
4. Regularly check and clean the sump pump pit to remove debris that could cause blockages.
5. Consider using a sump pump cover to keep cold air out of the pit.
6. Test the pump periodically to ensure it’s functioning properly before freezing weather sets in.

Taking these proactive steps can help keep your sump pump running smoothly all winter long, protecting your home from potential water damage. For expert drainage solutions, Pro Landscapes MD offers professional services to ensure your system is winter-ready and efficient.
